5 Replacing Parts

DX100 5.1 Replacing DX100 Parts

5-20

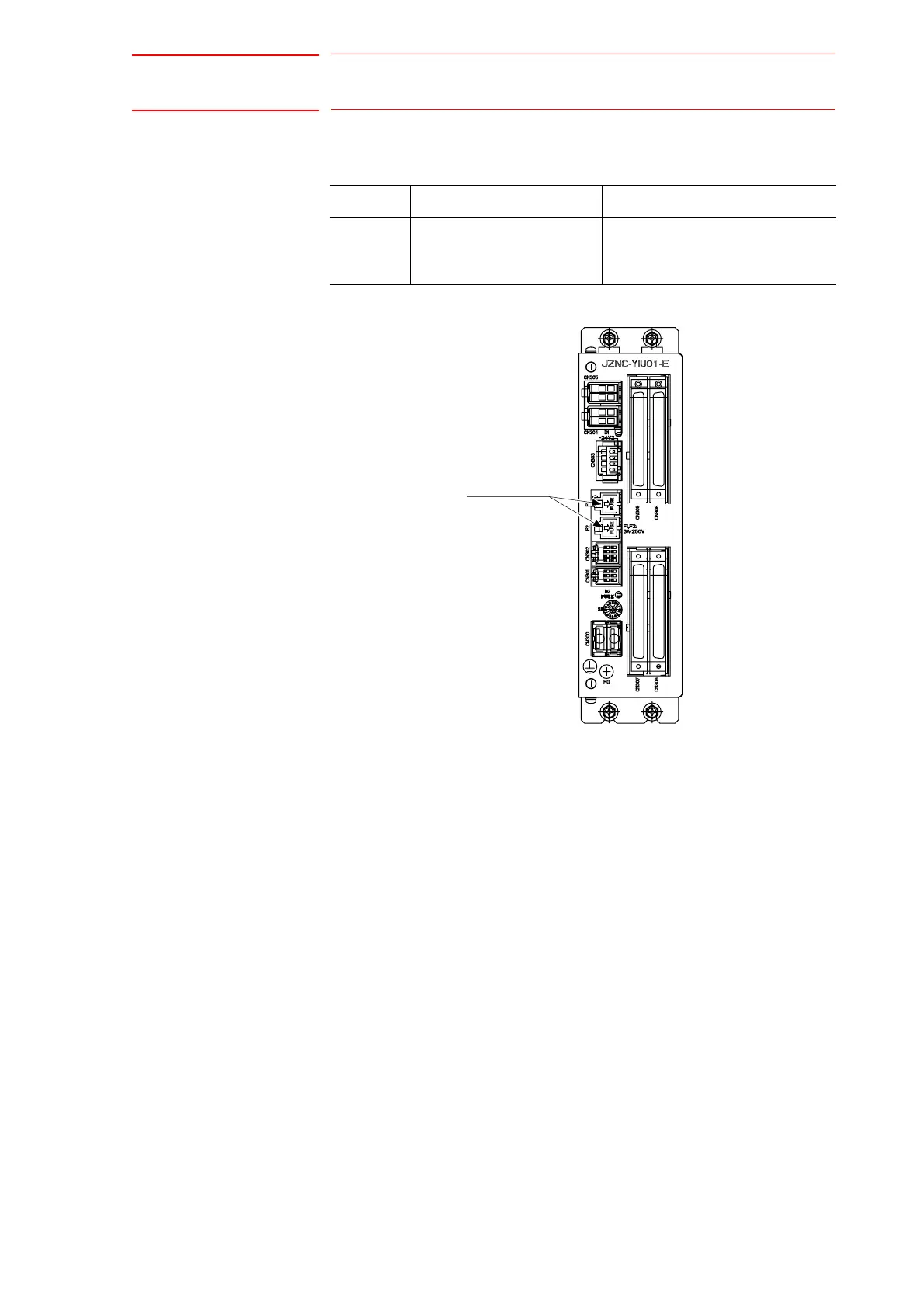

5.1.5.2 I/O Unit

The types of fuses on the I/O unit (JZNC-YIU01-E) are as follows.

Replacement Fuse of I/O Unit (JZNC-YIU01-E)

If the fuse is blown, replace it with the same type of fuse (supplied or

spare parts).

Parts No. Fuse Name Specification

F1, F2 24VDC Fuse for I/O 02173.15P, 250V,3.15A,

Rapid Cut Fuse

(LITTEL)

F1,F2

DC24V for I/O
