YASKAWA DX100 Service Manual

10 LED Indicator on Circuit Board
DX100 10.2 LED Indicator on Robot I/F Circuit Board
10-2
10.2 LED Indicator on Robot I/F Circuit Board

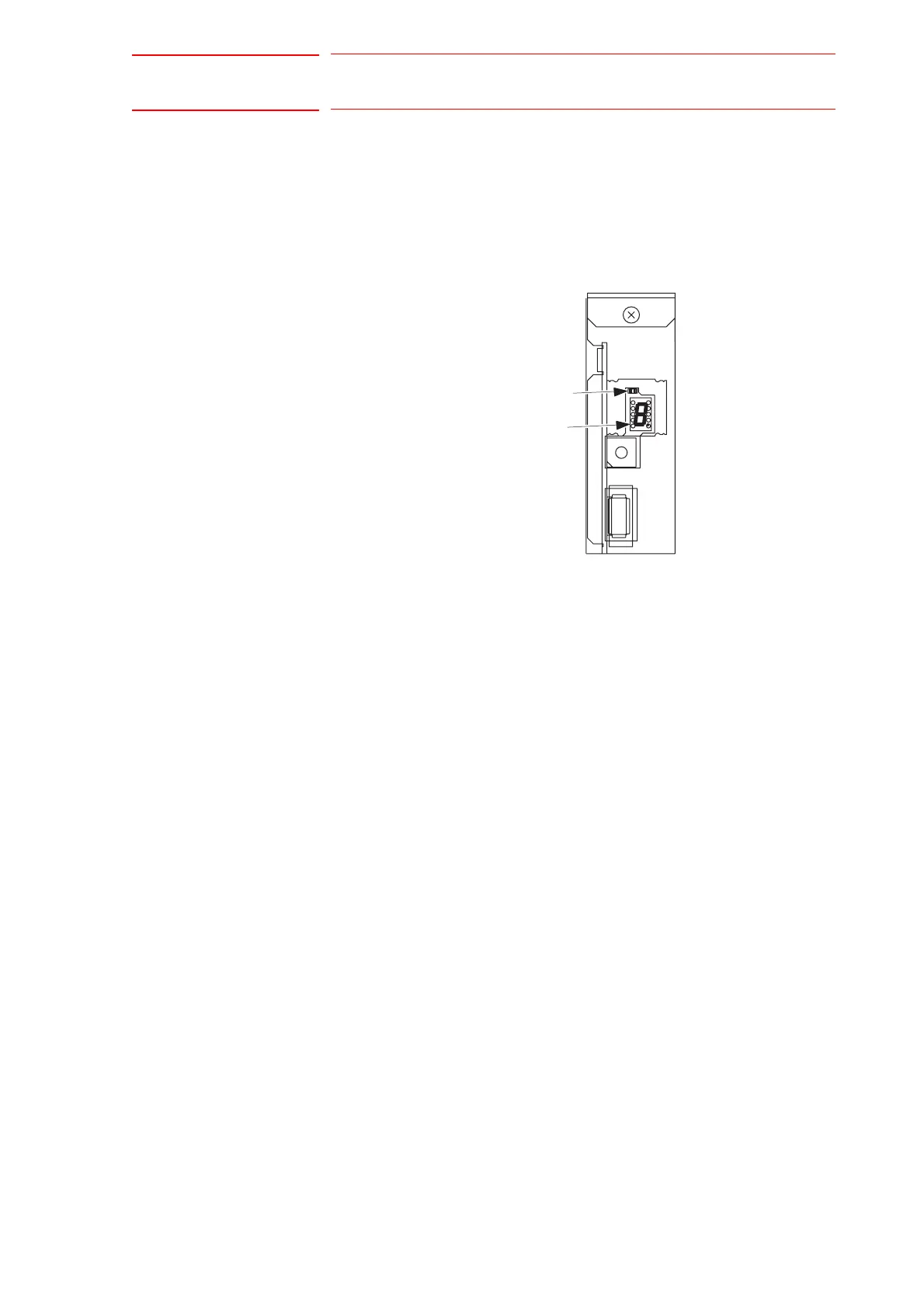

The 7-segment LED indicator and battery alarm LED lamp are located on
the robot I/F circuit board (JANCD-YIF01).
See chapter 10.3 “7 SEG-LED Indicator” for details displayed by the 7-
segment LED indicator. The battery alarm LED lamp is lit when the
battery runs out. See chapter 5.1.1 “Replacing Parts of the CPU Unit” .
Battery alarm
LED lamp
7-segment
LED indicator

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
