5 Replacing Parts
DX100 5.1 Replacing DX100 Parts
5-21
5.1.5.3 Machine Safety Unit

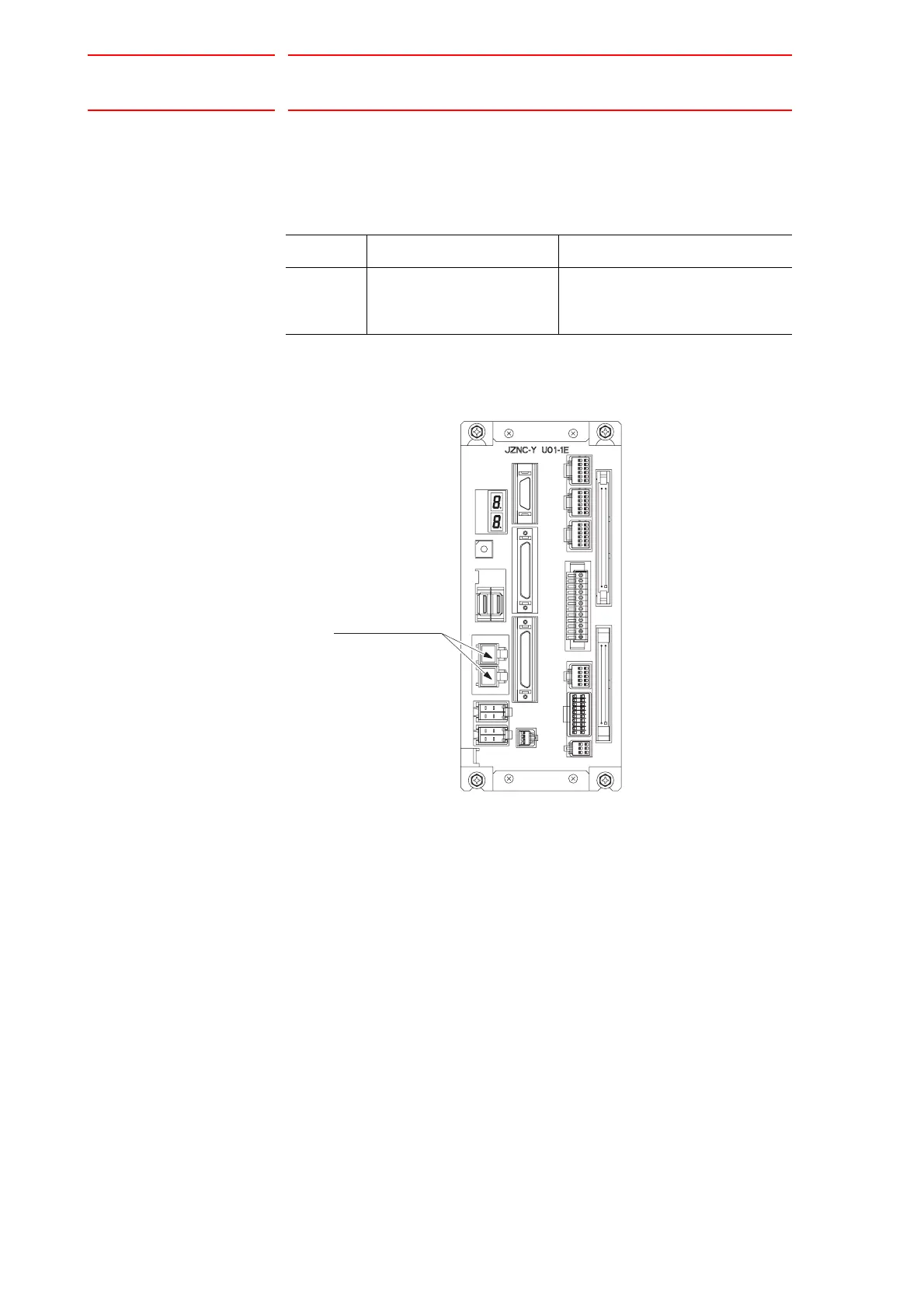

The types of fuses on the machine safety unit (JZNC-YSU01-1E) are as
follows.
Replacement Fuse of Machine Safety Unit
If the fuse is blown, replace it with the same type of fuse (supplied or
spare parts).
Parts No. Fuse Name Specification
F1, F2 24VDC Fuse for I/O 02173.15P, 250V,3.15A,
Rapid Cut Fuse
(LITTEL)
FUSE
CN215 CN216
CN208
CN209
CN210
CN211
CN212 CN213 CN214
CN200 CN201
CN202
CN203 CN205 CN206 CN207
A
B
1
A
B
1
A
B
1
F1,F2
DC24V Fuse for I/O
FRC5-C50S52T-OLS(D20)
