YASKAWA DX100 Service Manual

7 System Diagnosis
DX100 7.3 Input/Output Status
7-2
7.3 Input/Output Status
7.3.1 Universal Input
The status of input signal which is referred to by input instruction of a job
can be confirmed.

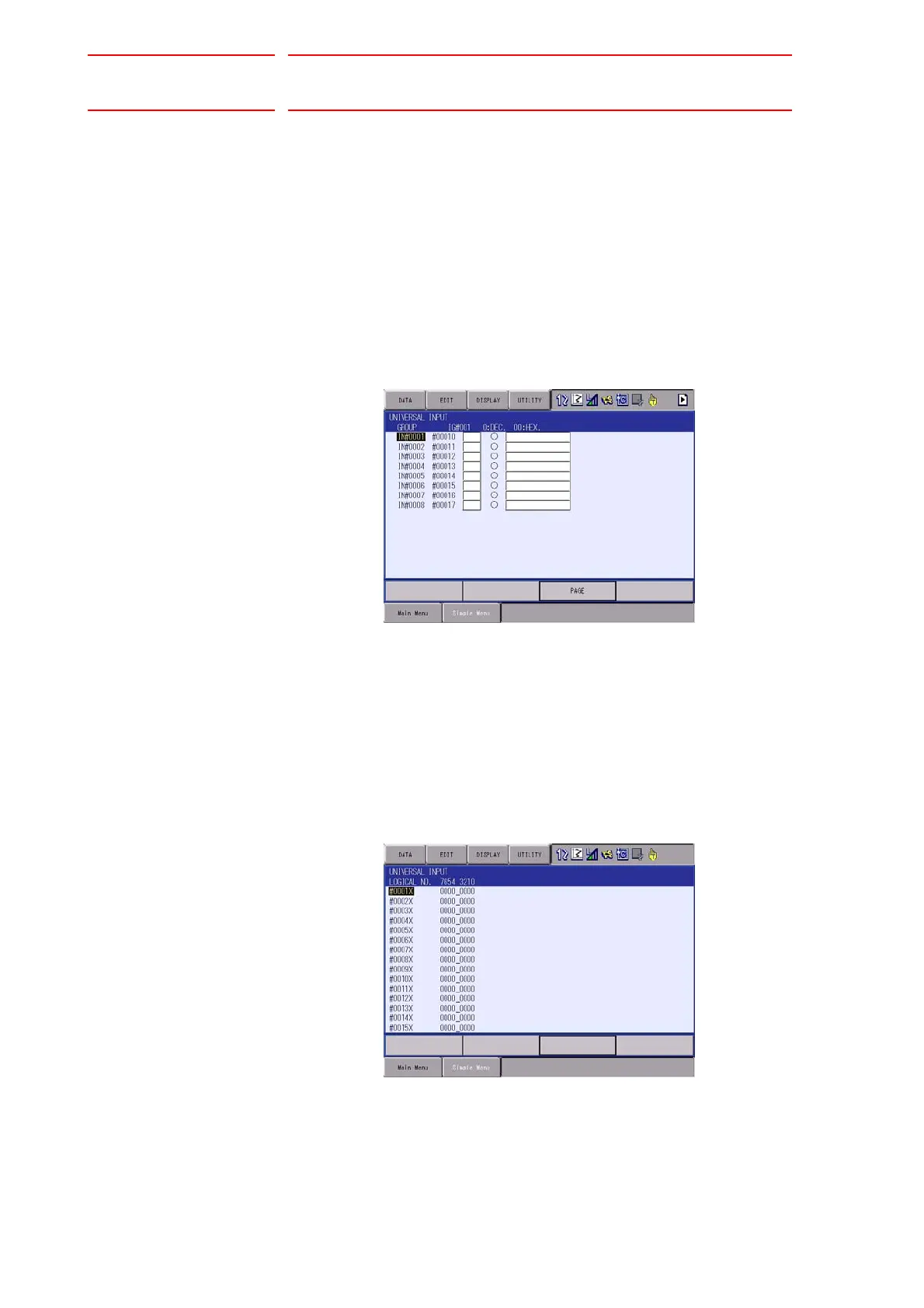

7.3.1.1 Universal Input Window
1. Select {IN/OUT} under the main menu.
2. Select {UNIVERSAL INPUT}.
– The UNIVERSAL INPUT window appears.
7.3.1.2 Universal Input Simple Window
1. Select {IN/OUT} under the main menu.
2. Select {UNIVERSAL INPUT}.
– The UNIVERSAL INPUT window appears.
3. Select {SIMPLE} from the pull-down menu of {DISPLAY}.
– The UNIVERSAL INPUT simple window appears.

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
