YASKAWA DX100 Service Manual

6 Operations After Replacing Parts
DX100 6.4 Setting the Second Home Position (Check Point)
6-19

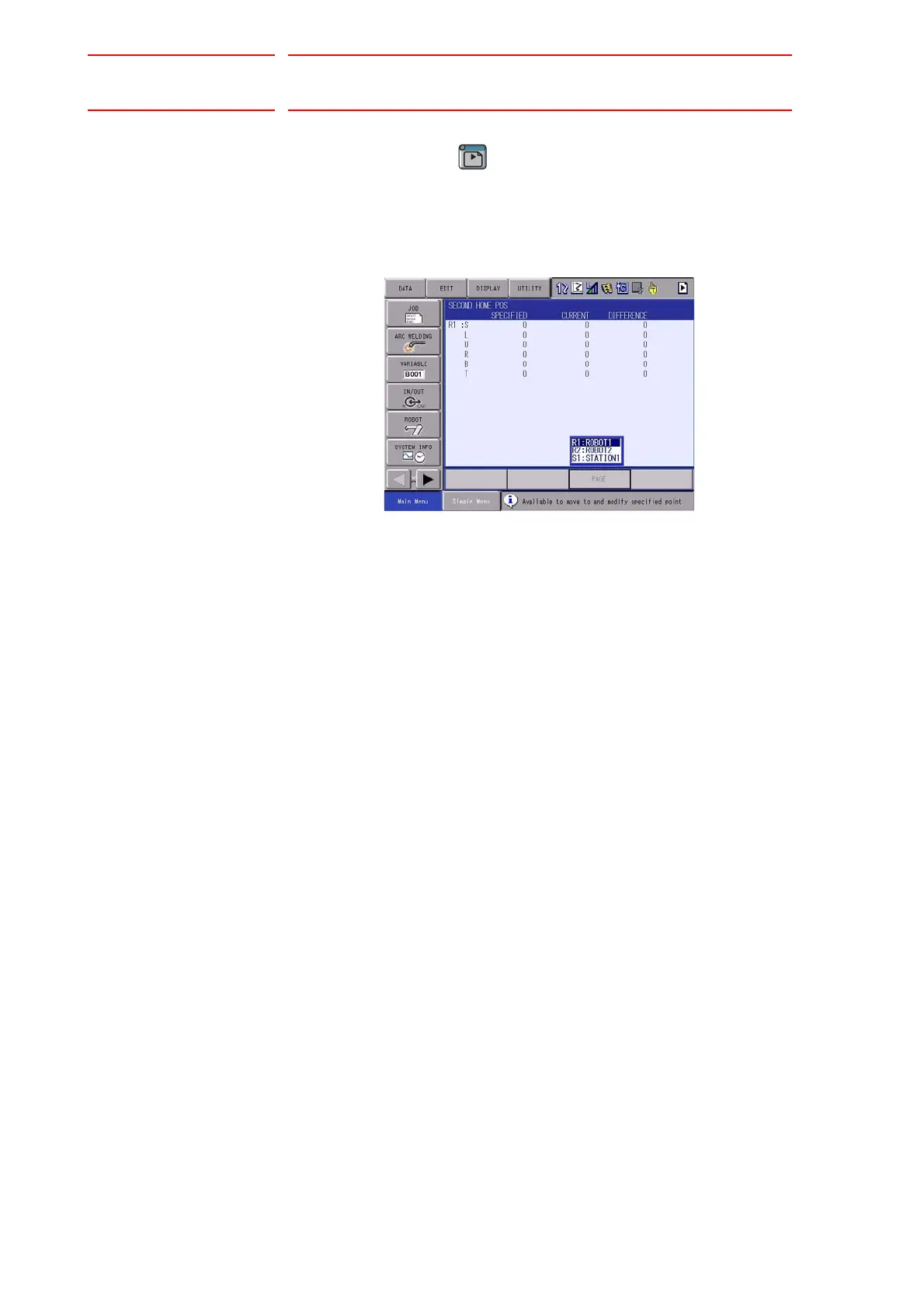

3. Press the page key .
or select "PAGE" to display the selection window for the control group.
– The group axes by which the second home position is set is
selected when there are two or more group axes.
4. Press [FWD].
– TCP moves to the second home position. The robot moving speed is
set as selected manual speed.
5. Select {DATA} under the menu.
6. Select {CONFIRM POSITION}.
– The message “Home position checked” is shown.
Pulse data of the second home position and current pulse data are
compared. If the compared error is in allowed range, playback
operation can be done.
If the error is beyond the allowed range, the alarm occurs again.
PAGE
GO BACK
PAGE
GO BACK

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
