12-3
IM PX8000-02EN
Setting Auto Scrolling (Auto Scroll)

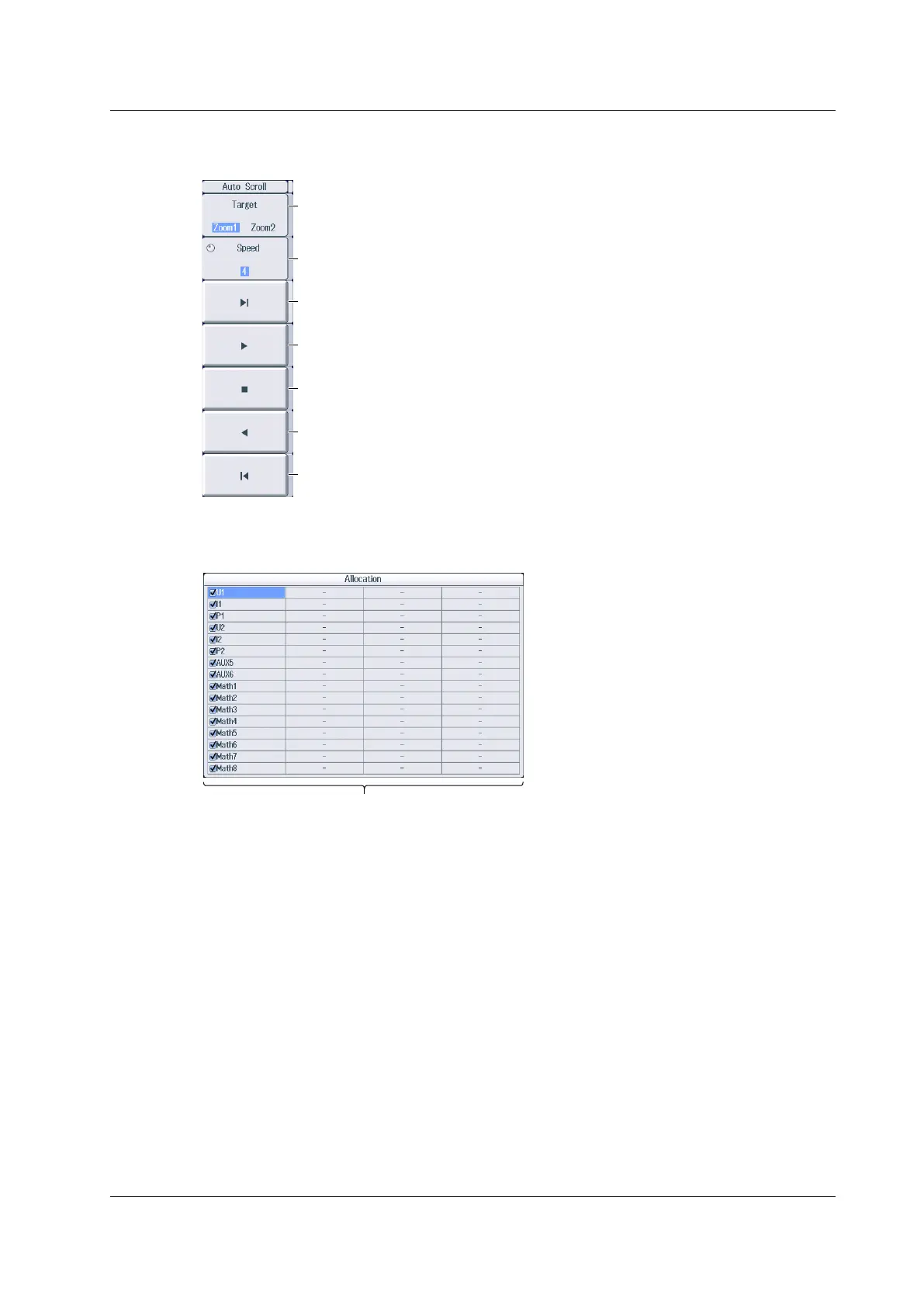

Press the Auto Scroll soft key to display the following menu.
Select the zoom box to auto scroll.
When both Zoom 1 and Zoom 2 window displays are on, select Zoom 1 or Zoom 2.
Set the scroll speed (1-10).
Starts scrolling to the right
Stops auto scrolling
Starts scrolling to the left
Moves to the left edge of the Main window
Moves to the right edge of the Main window
Allocating Zoom Source Waveforms (Allocation)
Press the Allocation soft key to display the following screen.
Select the zoom source waveforms.
The waveforms that can be selected are displayed.
12.1 Zooming in on or out of Waveforms
