22-24
IM PX8000-02EN

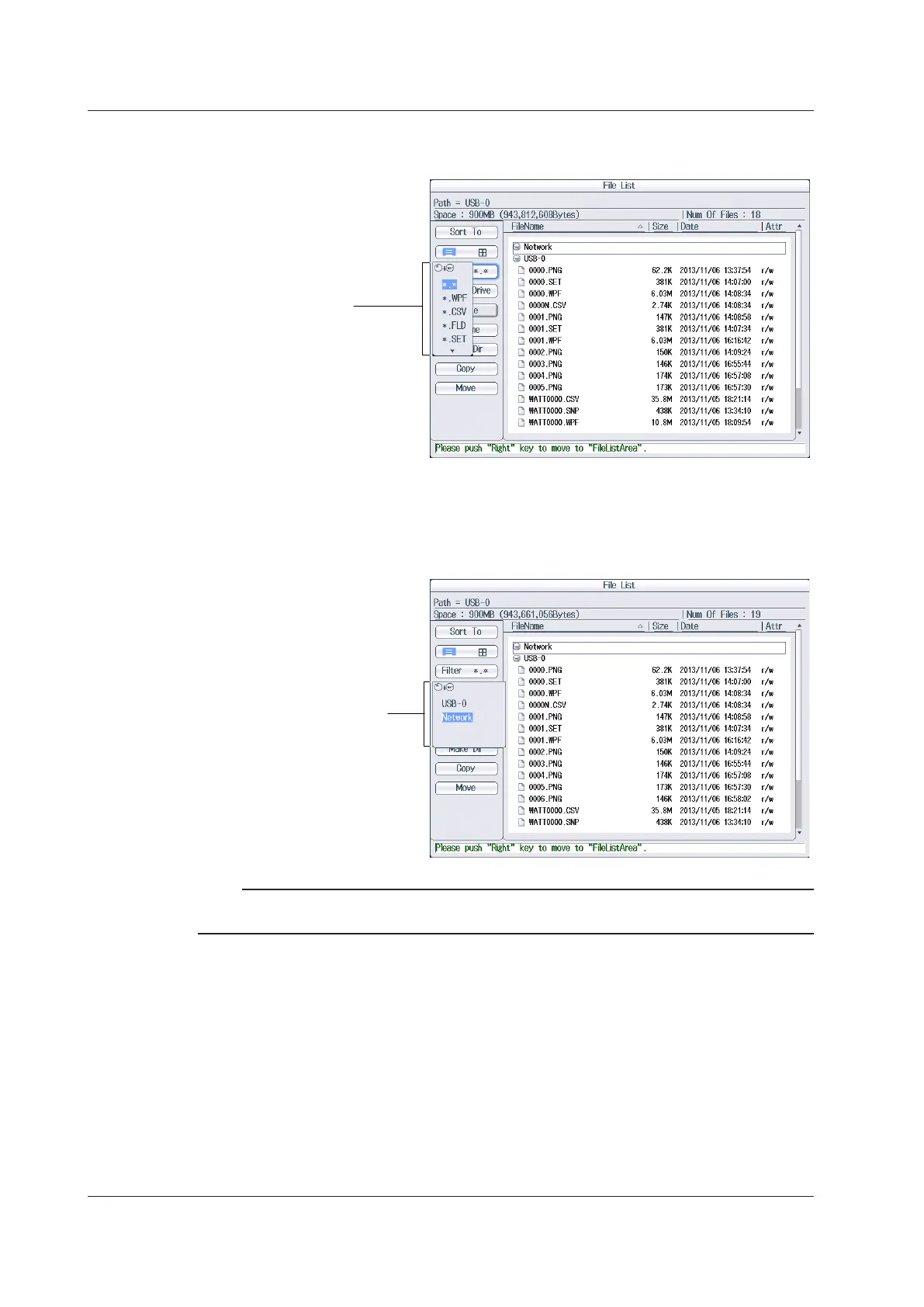

Selecting the Type of File to List (Filter)
Select
Filter on the operation menu to display the following screen.
Select the type of files to list.
*.*: All files
*.WPF: Binary waveform files
*.CSV: ASCII waveform files
*.FLD: Floating-point waveform files
*.SET: Setup files
*.BMP: Bitmap image files
*.PNG: PNG image files
*.JPG: JPEG image files
*.SNP: Snapshot waveform files
*.TXT: Text files, custom display configuration files for numeric data, MATLAB waveform files
*.WDF: WDF binary waveform files
Changing the Storage Medium or Drive (Change Drive)
Select
Change Drive on the operation menu to display the following screen.
Select the storage medium (drive).
SD-1: SD card
USB-0: The first detected USB storage
medium
USB-1: The second detected USB
storage medium
Note
You can also change the storage medium by highlighting the storage medium (drive) you want to change to
in the file list and pressing SET.
22.10 File Operations
