• When Waveform Acquisition Is Running
Input
Signal
Type
Linear
Scaling
Mode
Available Options
for the RANGE
Knob
Measurement Range
Values
(that appear on the screen)
Measurement Range Units
(that appear on the screen)
Analog OFF 50.00mV,
100.0mV,
250.0mV,
500.0mV,
1.000V,
2.500V,
5.000V,
10.00V,
25.00V,
50.00V,
100.0V
Upper value:
Available option value of
the RANGE knob
Lower value:
Available option value of
the RANGE knob
Upper unit value:
Unit selected on the torque speed
measurement setting screen
Lower unit value:
Same unit as the available
options for the RANGE knob
AX+B,
P1‒P2
Upper value:
Value obtained by
multiplying the available
option value of the
RANGE knob by the linear
scaling coefficient.
Lower value:
Available option value of
the RANGE knob
Upper unit value:
Unit selected on the torque speed
measurement setting screen
Lower unit value:
Same unit as the available
options for the RANGE knob
Pulse — 1, 2, 5, 10, 20, 50,
100, 200, 500, 1k,
2k, 5k, 10k, 20k, 50k,
100k, 200k, 500k,
1M
Upper value:
No display
Lower value:
Available option value of
the RANGE knob
Upper unit value:
No display
Lower unit value:
Unit selected on the torque speed
measurement setting screen

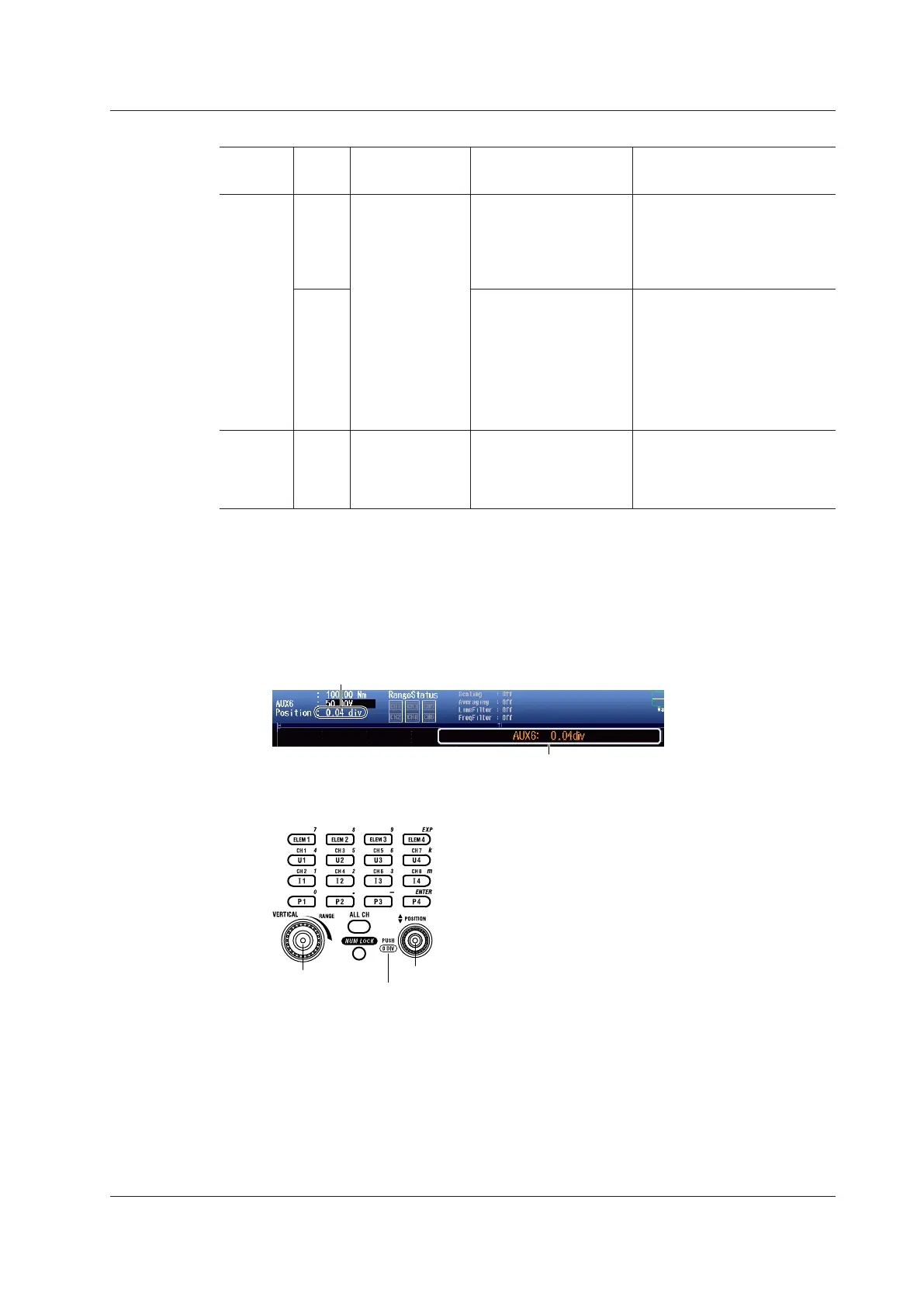

Setting the Torque Waveform Vertical Position
When the Zoom Method is Set to DIV (Vertical POSITION Knob)
Turn the vertical POSITION knob to set the waveform vertical position.
• Set in the range of –5.00 div to 5.00 div.
• If you do not operate the vertical POSITION knob for approximately 3 seconds, the vertical position that
you are setting with the knob will disappear from the screen.
Vertical position of the displayed waveform
Use the vertical POSITION knob to display the vertical
position that is currently being set.
• You can set the vertical position to 0 div by pressing the knob.
RANGE knob
Vertical POSITION knob
This indicates that you can press the vertical POSITION knob
to set the vertical position to 0 div.
2.6 Configuring Torque Measurements
To Next Page
