When the Zoom Method is Set to SPAN (Upper and Lower Limits)
Using the Upper/Lower soft key and the jog shuttle, set the torque at the top edge of the waveform
screen (upper limit) and the torque at the bottom edge of the screen (lower limit) to set the waveform
vertical position.

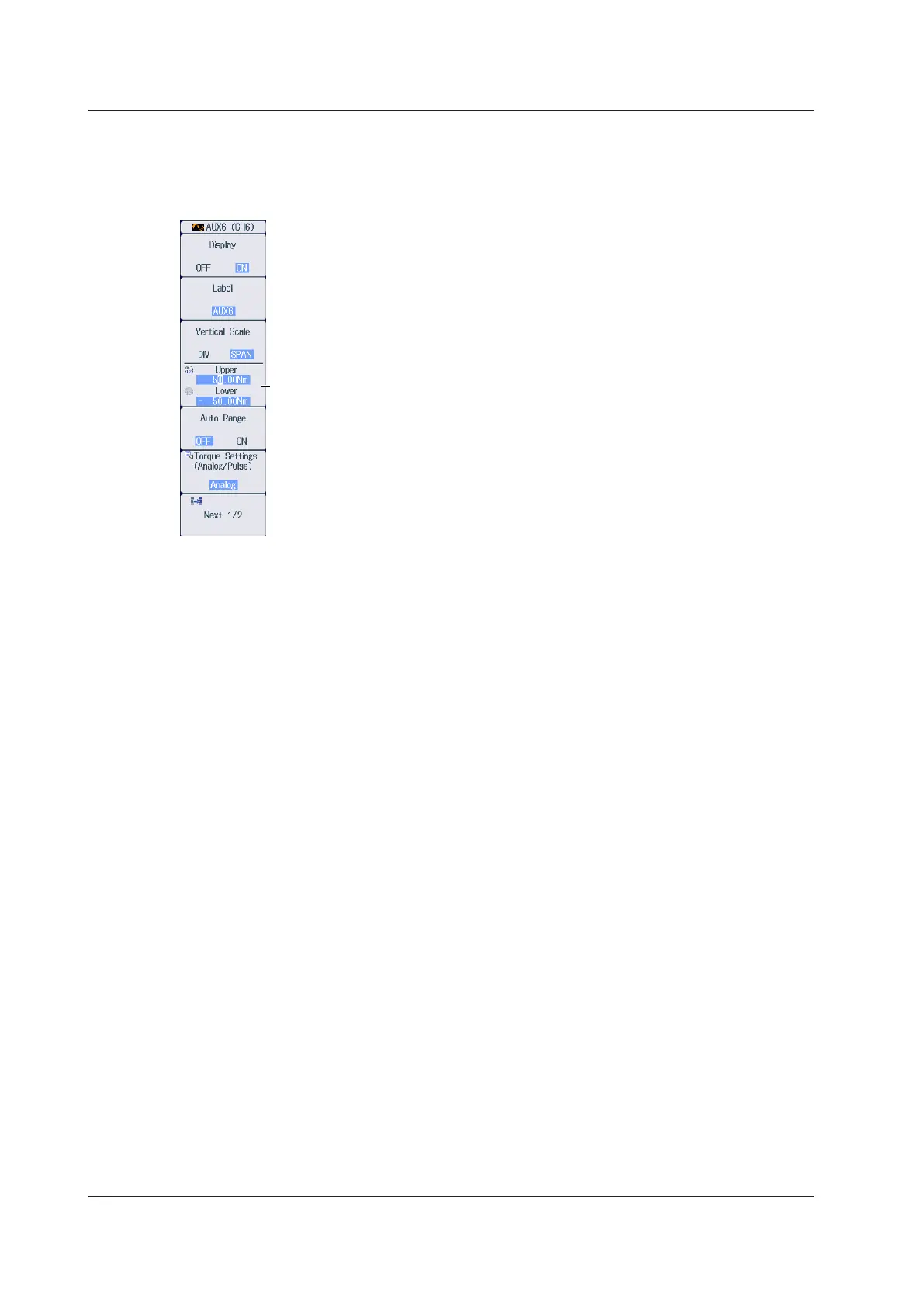

Set the upper and lower limits of
the display range.
