YOKOGAWA SL1400 User Manual

5-7
IM 701240-01E
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
App
Index

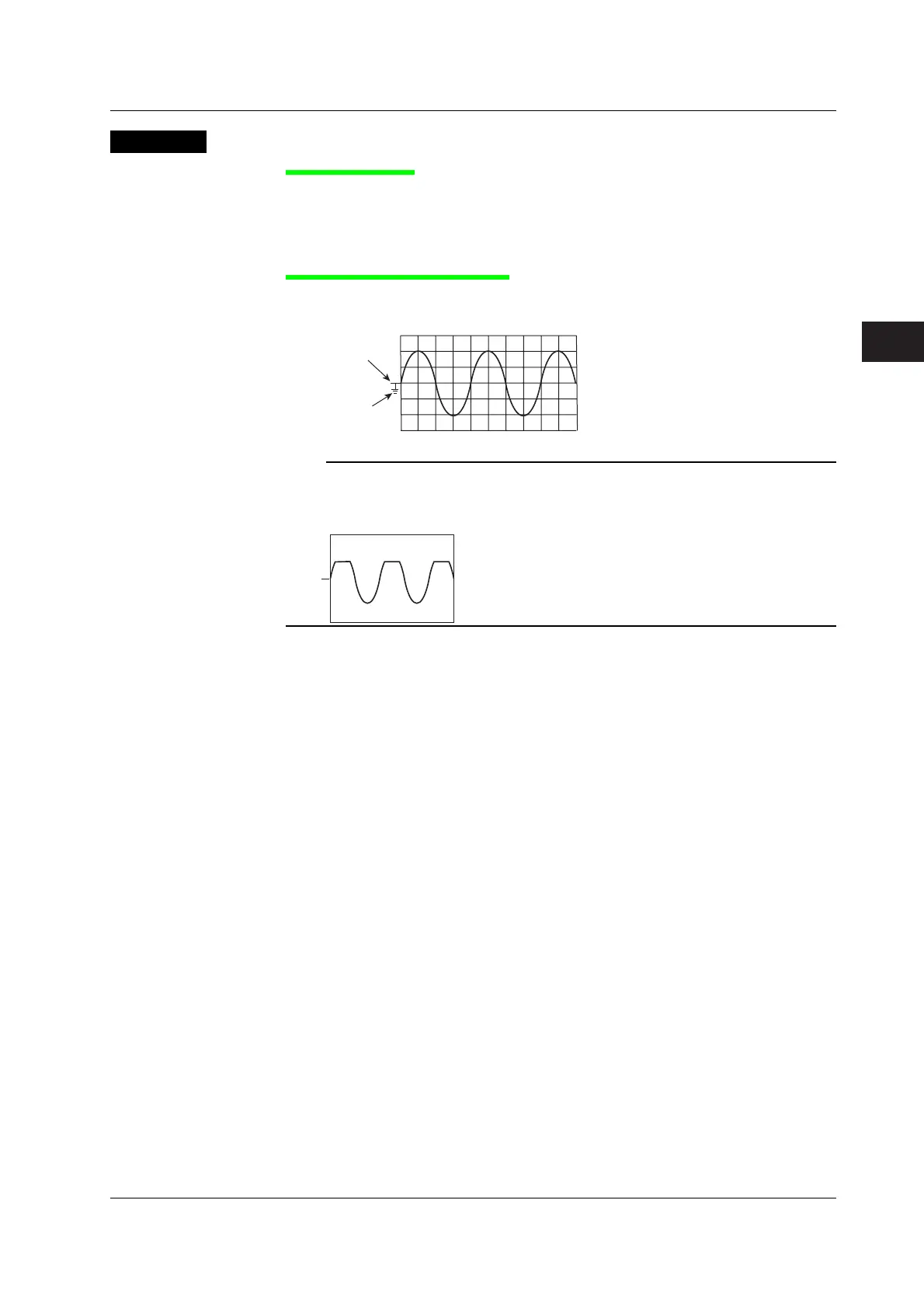

Horizontal and Vertical Axes
Explanation
Selectable Range
Set the vertical display position of the waveform for each channel.
Selectable range: ±5 divisions from the center position of the waveform display area
Resolution: 0.01 division
Checking the Vertical Position
For input waveforms and computed waveforms, the ground level and vertical position are
marked to the left of the waveform display area.
Ground level
mark
Vertical position
mark
Note
Data exceeding the measurement range (see section 2.2) is cut when the vertical position or
upper and lower limits (when Variable is ON) are changed, and the waveform appears clipped as
shown below.
5.4 Setting the Vertical Position of the Waveform
