Chapter 11 Waveform Analysis/Search
11.1 Displaying History Waveforms
<For a description of this function, refer to pages 2-30 and 2-43.>
Procedure

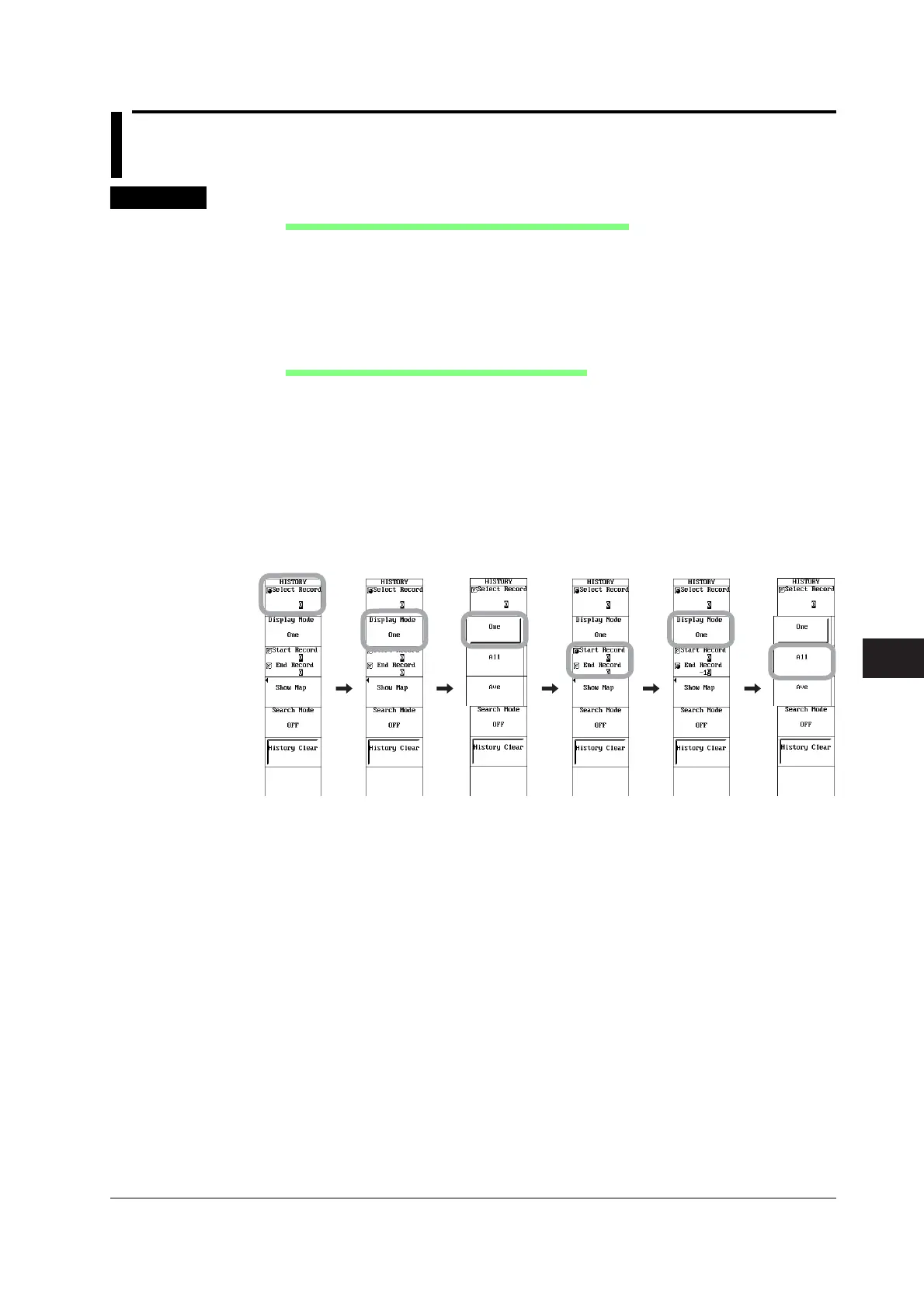

Displaying the Waveform Data of a Selected Record
1. Press HISTORY.
2. Press the Select Record soft key.
3. Turn the jog shuttle to set the record No. you want to recall. Set the record No.
in the range of Start Record to End Record.
4. Press the Display Mode soft key to select One.
Displaying All of the Selected Waveform Data
5. Press the Start Record/End Record soft key to set the jog shuttle control to
Start Record.
6. Turn the jog shuttle to set the first record No. to be accumulated.
7. Likewise, set the last record No. (End Record) to be accumulated.
8. Press the Display Mode soft key to select All.
The waveform data of record numbers specified in steps 5 to 7 are displayed
accumulated.
To abort the accumulated display, press the Display Mode soft key to select
One.
