Horizontal and Vertical Axes

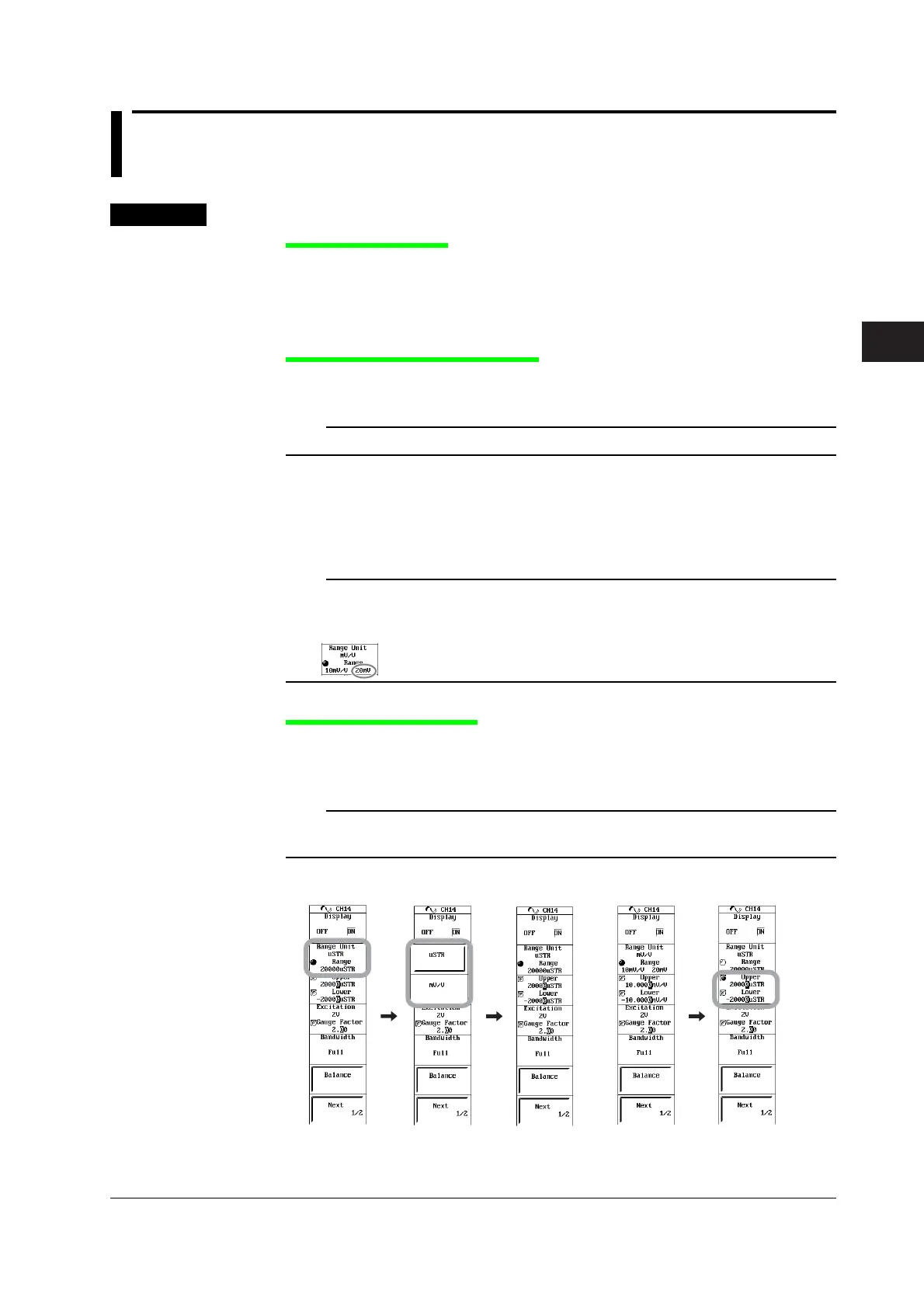

5.15 Setting the Strain Measurement
<For a description of this function, refer to page 2-12.>
Procedure
Selecting the Channel
1. Press CH.
2. Press one of the soft keys from CH1 to CH16 in which the 701270
(STRAIN_NDIS) or 701271 (STRAIN_DSUB) is installed.
For the displayed menus when this operation is executed, see section 5.1.
Selecting the Measurement Range
3. Press the Range Unit soft key, and then press the µSTR (the unit of strain) or
mV/V (the unit of the output value of the strain gauge transducer) soft key.
Note
Be sure to execute balancing when you change the measurement range.
If µSTR Is Selected
4. Turn the jog shuttle to select the Range from 500µSTR to 20000µSTR.
If mV/V Is Selected
4. Turn the jog shuttle to select the Range from 0.25 mV/V to 10 mV/V.
Note
If the range unit is set to mV/V, a numeric value is displayed at the right side of the range
display. This value is the maximum input at the current bridge voltage converted to volts. It
indicates the maximum input voltage at the selected range.
Setting the Display Range
5. Press the Upper/Lower soft key to set the jog shuttle control to Upper.
6. Turn the jog shuttle to set the upper limit.
7. Likewise, set Lower.
Note
Pressing RESET sets the maximum and minimum values of the measurement range to the
upper and lower limits.
When Range
Unit is µSTR
When Range
Unit is mV/V
To Next Page
