IM 701240-01E

5-46

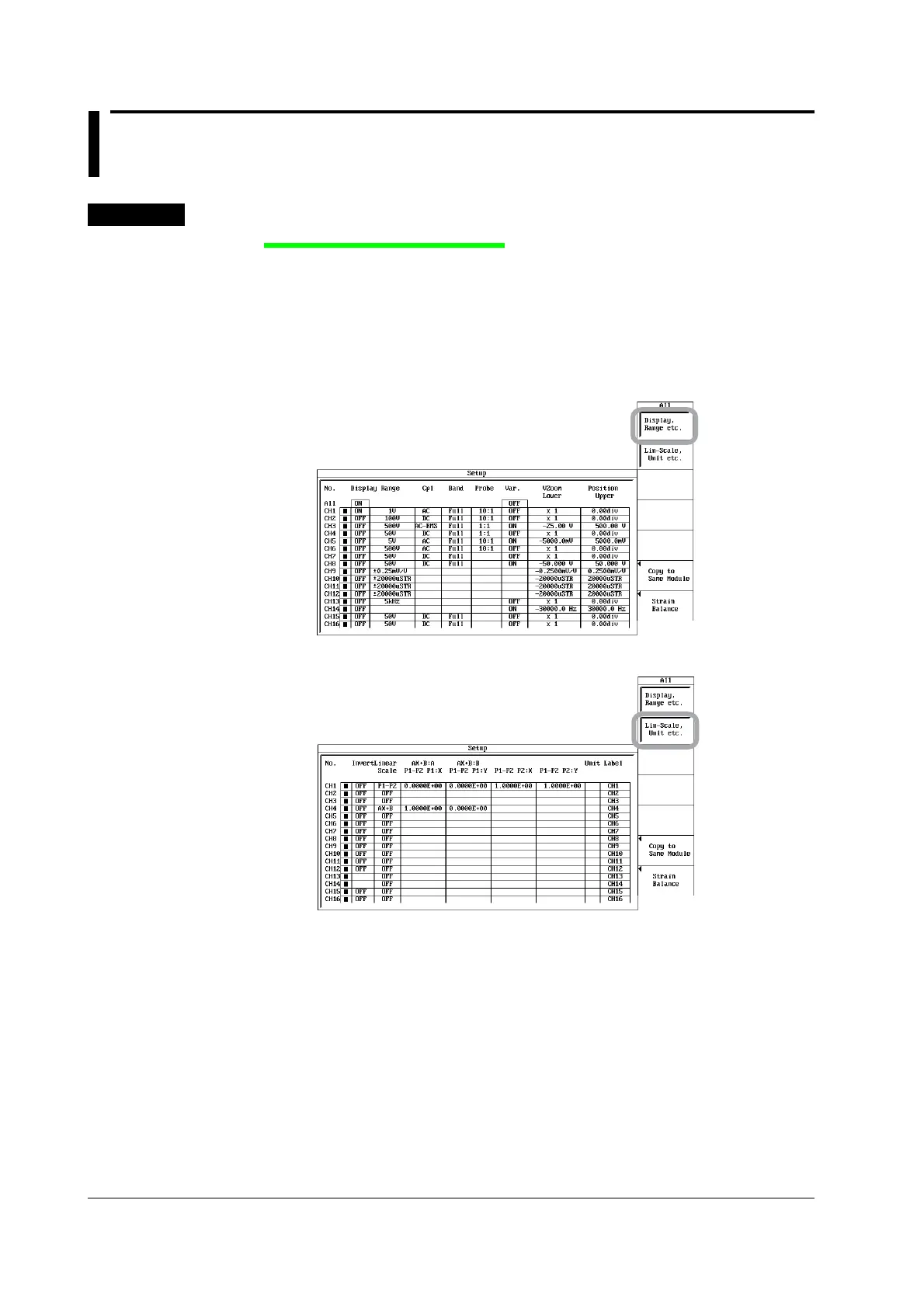

5.19 Entering Settings on the All Channel Menu

Procedure

Displaying the All Channel Menu

1. Press ALL CH.

2. Press the Display, Range etc. or Lin-Scale, Unit etc. soft key. A setup list of

the vertical axis (excluding inversion, linear scale, and unit) or a setup list of

inversion, linear scaling, and unit is displayed.

3. Set each item.

• Use jog shuttle+arrow keys to move the cursor.

• Use jog shuttle+SELECT to set each item.

Setup list of the vertical axis

(excluding inversion, linear scaling, and unit)

Setup list of inversion, linear scaling, and unit
