IM 701240-01E
5-44

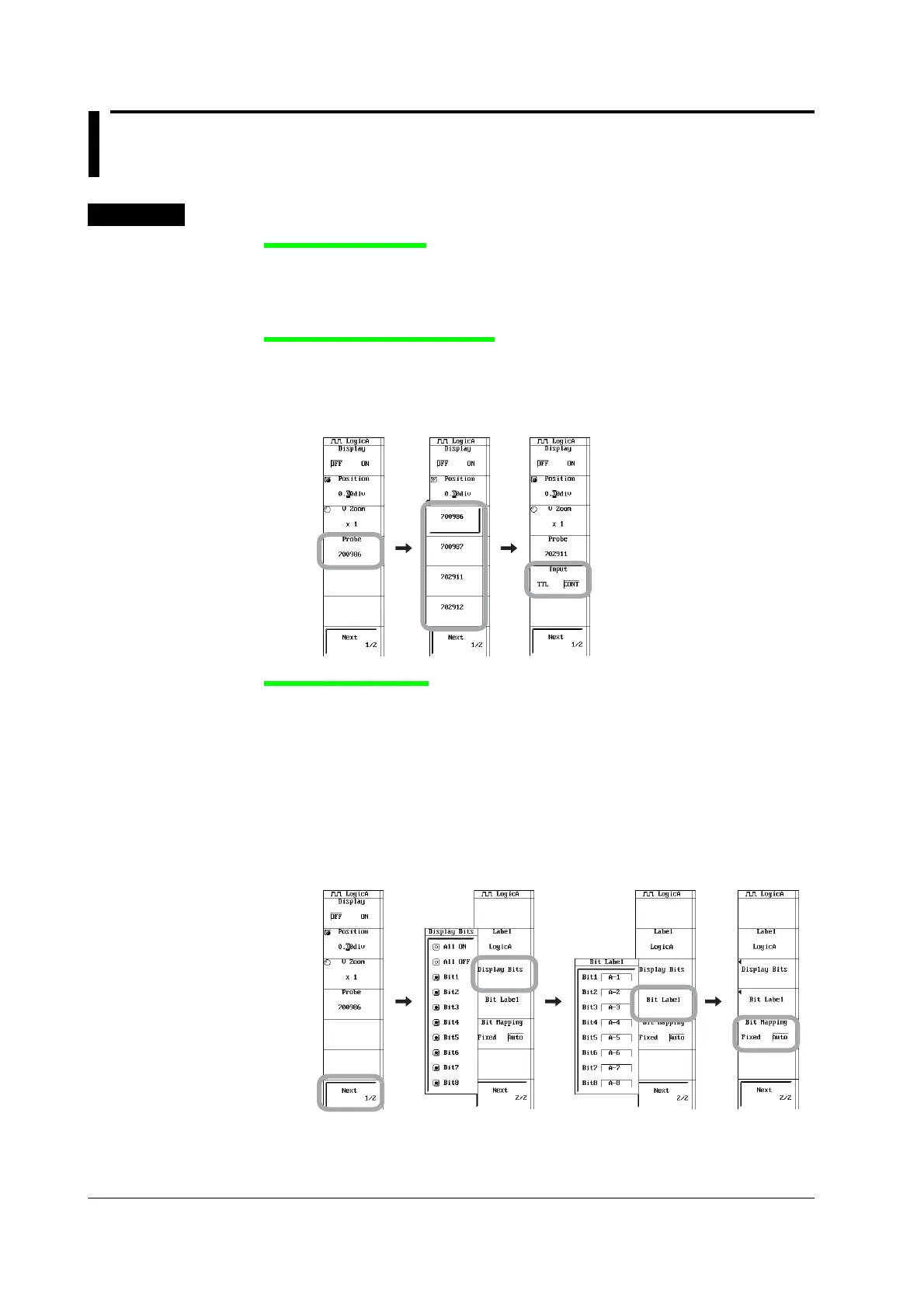

5.18 Setting Logic Waveforms
<For a description of this function, refer to page 2-16.>
Procedure
Selecting the Channel
1. Press CH.
2. Press the Logic A or Logic B soft key.
For the displayed menus when this operation is executed, see section 5.1.
Selecting the Input Signal Type
3. Press the Probe soft key. The logic probe selection menu appears.
4. Press one of the soft keys from 700986 to 702912 to select the type of logic
probe that is connected.
5. If you select 702911 or 702912 for the logic probe, select the input signal type.
Only when the logic probe is set
to 702911 or 702912
Setting the Bit Display
6. Press the Next 1/2 soft key.
7. Press the Display Bits soft key. The bit display ON/OFF dialog box appears.
8. Use jog shuttle+SELECT to turn the bit display ON/OFF.
You can turn ON all items at once by selecting All ON.
You can turn OFF all items at once by selecting All OFF.
9. Press the Bit Label soft key. The bit label setting dialog box appears.
10. Use jog shuttle+SELECT to set the bit label according to the procedure given
in section 4.2.
11. Press the Bit Mapping soft key to select how to assign the bit display. Select
Fixed or Auto.
To Next Page
