6-34
IM 701240-01E

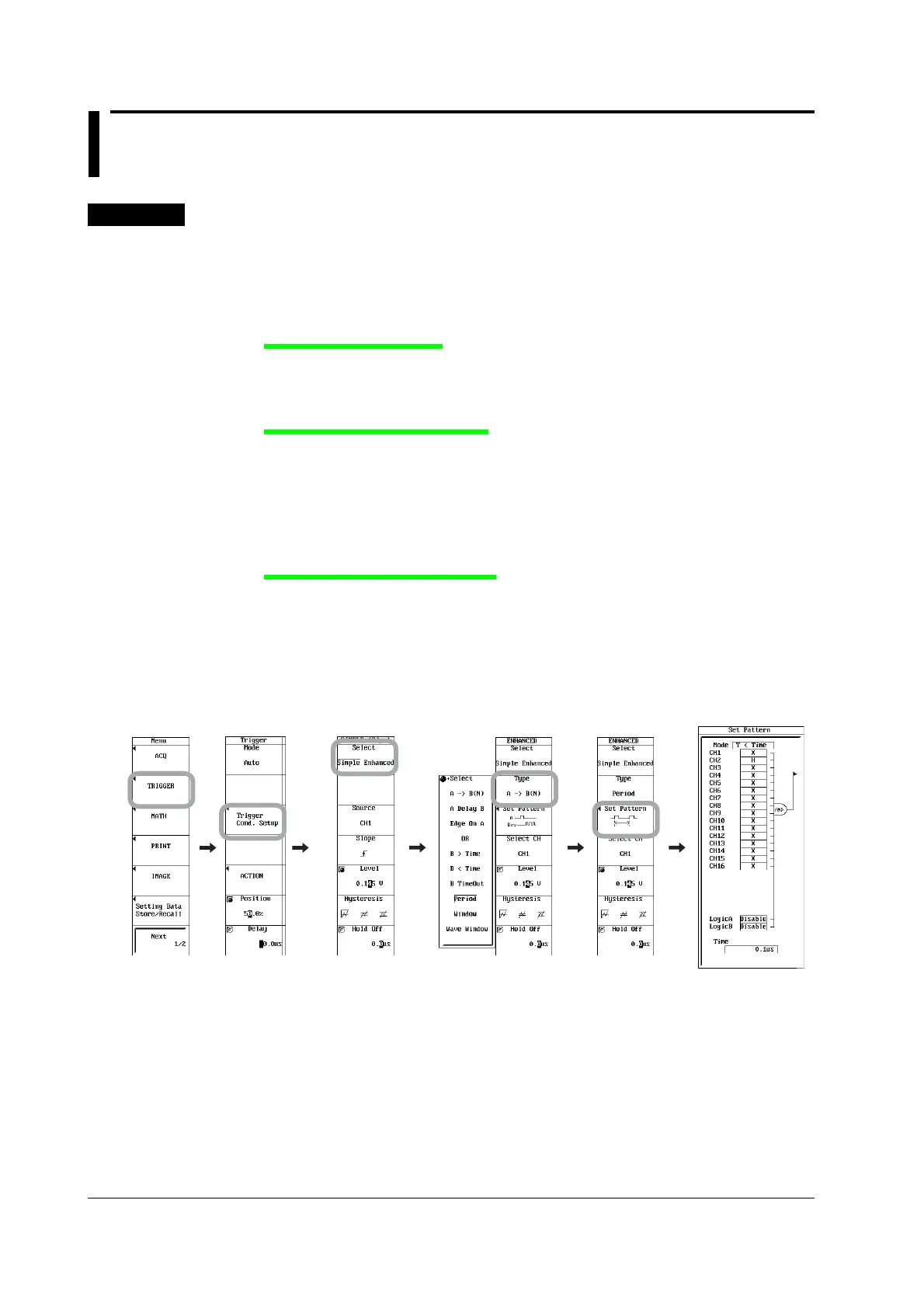

6.15 Setting the Period Trigger (ENHANCED)
<For a description of this function, refer to page 2-21.>
Procedure
1. Press MENU.
2. Press the TRIGGER soft key.
3. Press the Trigger Cond. Setup soft key.
4. Press the Select soft key to select Enhanced.
Setting the Trigger Type
5. Press the Type soft key. The trigger type selection menu appears.
6. Use jog shuttle+SELECT to select Period.
Setting the Condition B Status
7. Press the Set Pattern soft key. The Period trigger setup menu appears.
8. Use jog shuttle+SELECT to select Mode and use jog shuttle+SELECT to
select T > Time, T < Time, T1 < T < T2, or T < T1, T2 < T.
9. Use jog shuttle+SELECT to select the pattern of each channel (CH1 to CH16)
from H, L, and X. For logic input channels, select Disable or Enable.
Setting the Time of Satisfaction
• For T > Time or T < Time
10. Use jog shuttle+SELECT to set Time. Pressing RESET resets the value to 0.1
µs.
• For T1 < T < T2 or T < T1, T2 < T
10. Use jog shuttle+SELECT to set Time1 and Time2. Press RESET resets Time1
to 0.1 µs and Time2 to 0.2 µs.
To Next Page
