IM 701240-01E
5-6
5.4 Setting the Vertical Position of the Waveform
<For a description of this function, refer to page 2-7.>
Procedure
Selecting the Channel
1. Press CH.
2. Press one of the soft keys from CH1 to CH16, Logic A, and Logic B.
For the displayed menus when this operation is executed, see section 5.1.
Selecting Variable OFF
3. Press the Variable soft key to select OFF.
Setting the Vertical Position
4. Press the Position soft key to select Position.
5. Turn the jog shuttle to set the vertical position.
Turn Variable
OFF
Set the vertical
position
Set the vertical
position
Set the vertical
position
Set the vertical
position
Turn Variable
OFF
Turn Variable
OFF
The displayed menu varies depending on the installed input module.

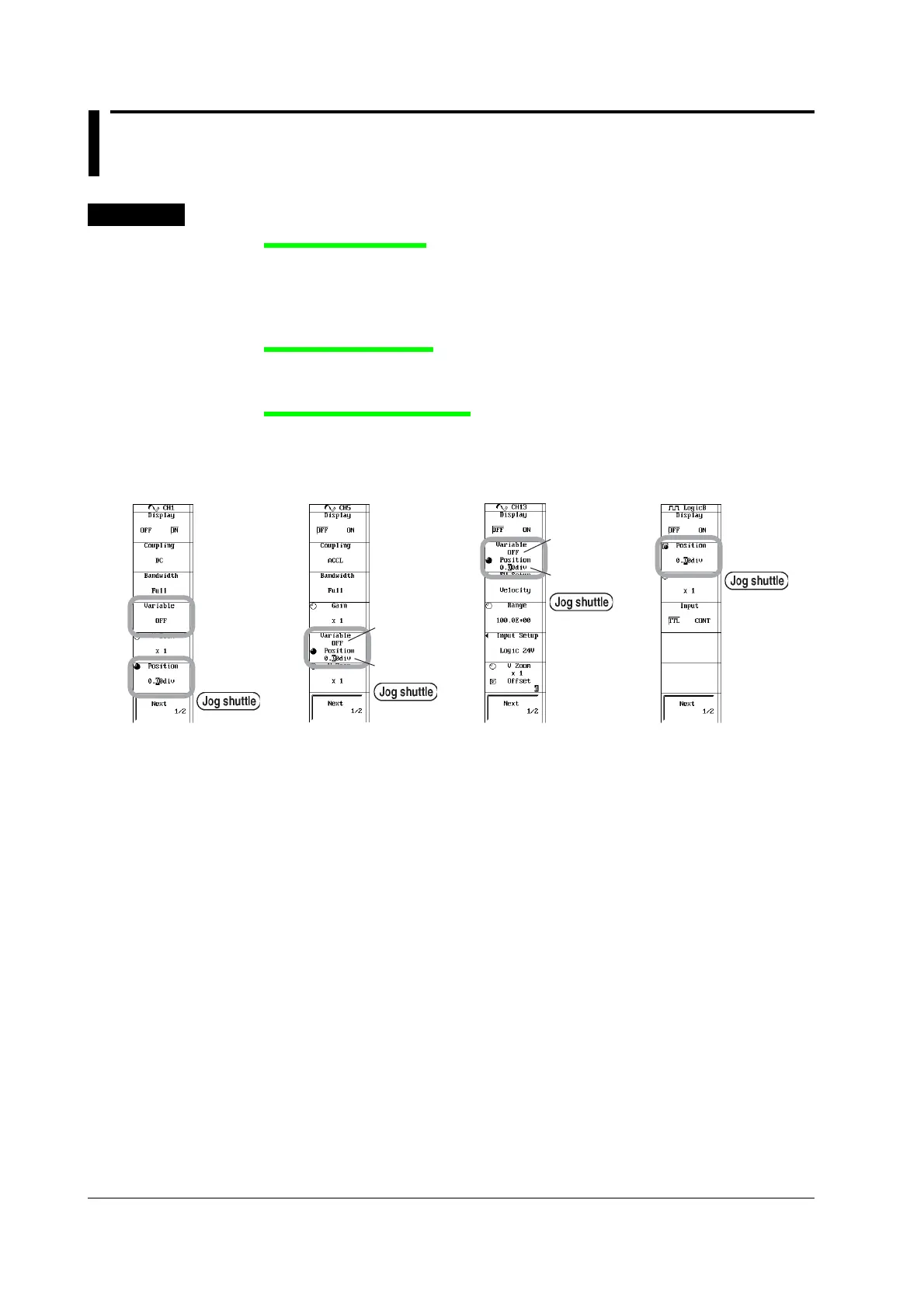

A display example is shown below.
