Zebra ZXP Series 3 Service Manual

132 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
Parameter Update

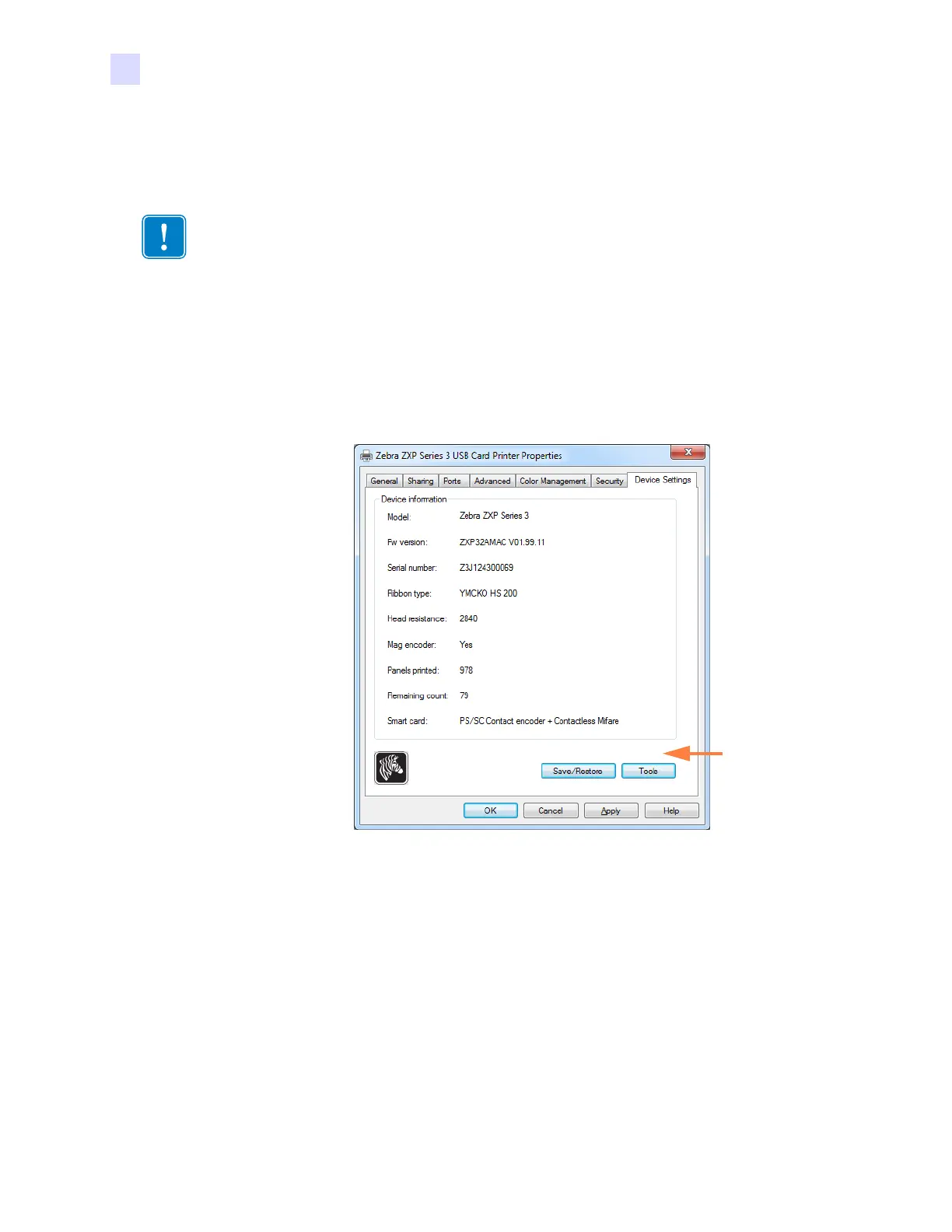

Step 1. Go to Start > Devices and Printers. Right click on the Zebra ZXP Card Printer
listing, then select Printer properties > Device Settings.
Step 2. The Device Settings tab will open.
Step 3. Click on the Tools button (arrow above).
Important • Before starting the Firmware Update, refer to the Standard Test Card you
printed prior to removing and replacing the Main
PCBA. You will need the Head Resistance,
the X and Y Offsets, and the End of Text value to update the firmware on the replacement
Main
PCBA.
If for any reason you were unable to print the Test Card, contact Zebra Technical Support to
obtain the above values.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
