5: Replacement Procedures

Procedures

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 133

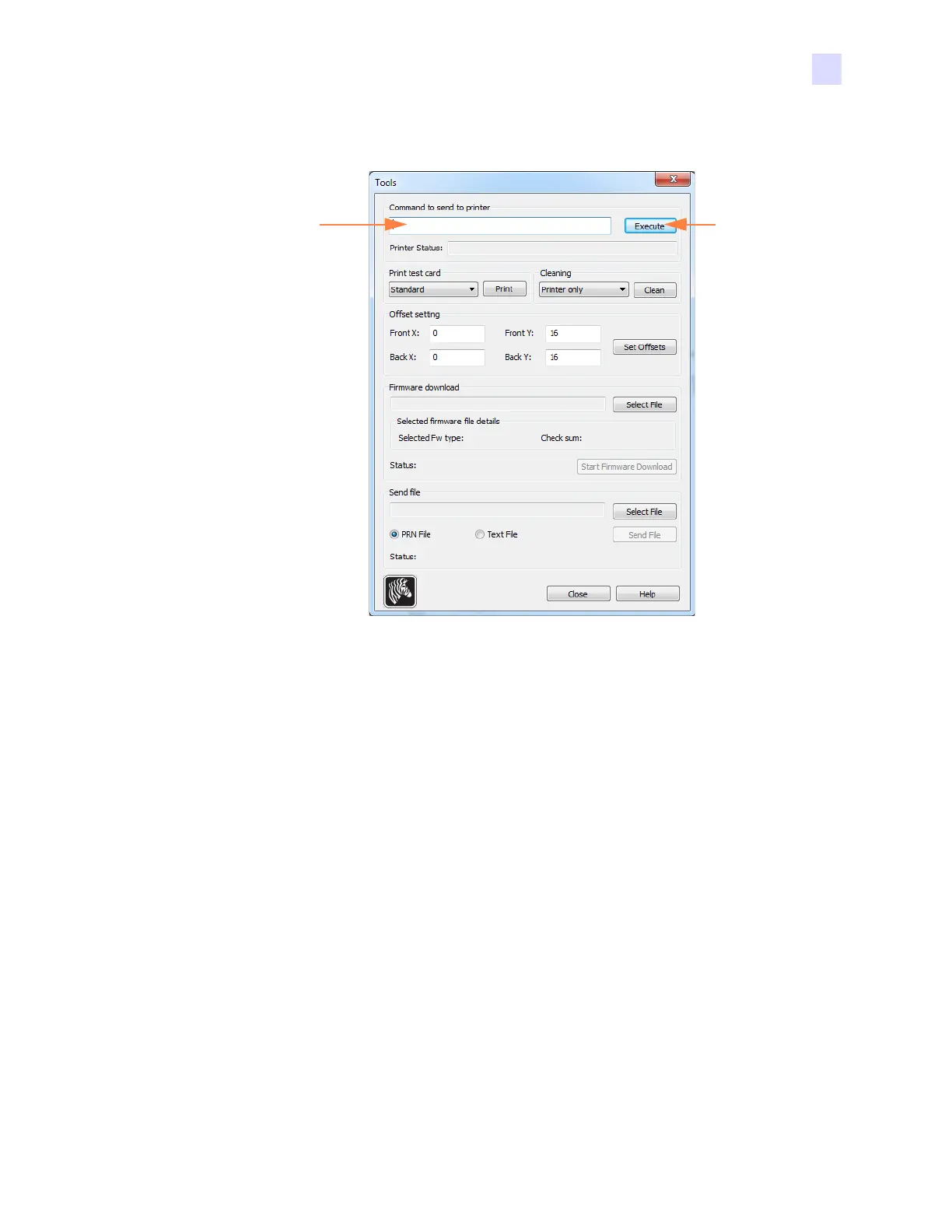

Step 4. This brings up the Tools display.

Type the

command

here ...

... then

click the

Execute

button.
