Zebra ZXP Series 3 Service Manual

134 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
5: Replacement Procedures
Procedures
Step 5. From the information on the Standard Test Card, update the printer’s parameters.
a. In the Command to send to printer field, type the Print Head Resistance (!R)
command, a space, and the resistance of the Printhead. From the Standard Test

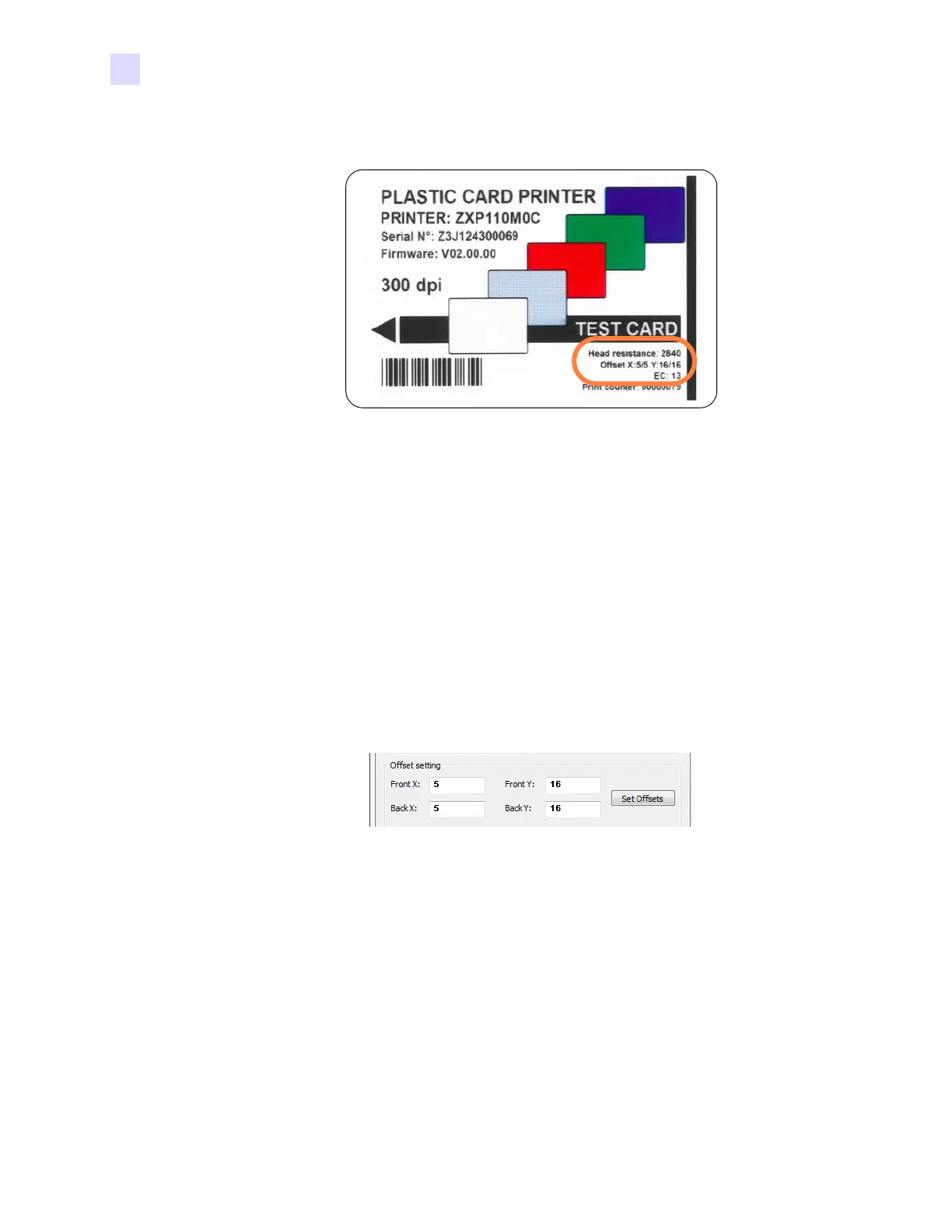

Card shown above, the complete command is !R 2840.
b. Click the Execute button.
c. In the Command to send to printer field, type the End of Print (+EC) command,
a space, and the end-of-print value. From the Test Card shown above, the
complete command is +EC 13.
d. Click the Execute button.
e. In the Offset setting section of the Tools display, enter the X and Y offsets for the
card front in the Front X and Front Y fields respectively. From the Standard Test
Card shown above, set Front X = 5 and Front Y = 16.
f. In the Offset setting section of the Tools display, enter the X and Y offsets for the
card back in the Back X and Back Y fields respectively. From the Standard Test
Card shown above, set Back X = 5 and Back Y = 16.
g. Click the Set Offsets button.
Step 6. The Parameter Update is complete.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
