5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 155

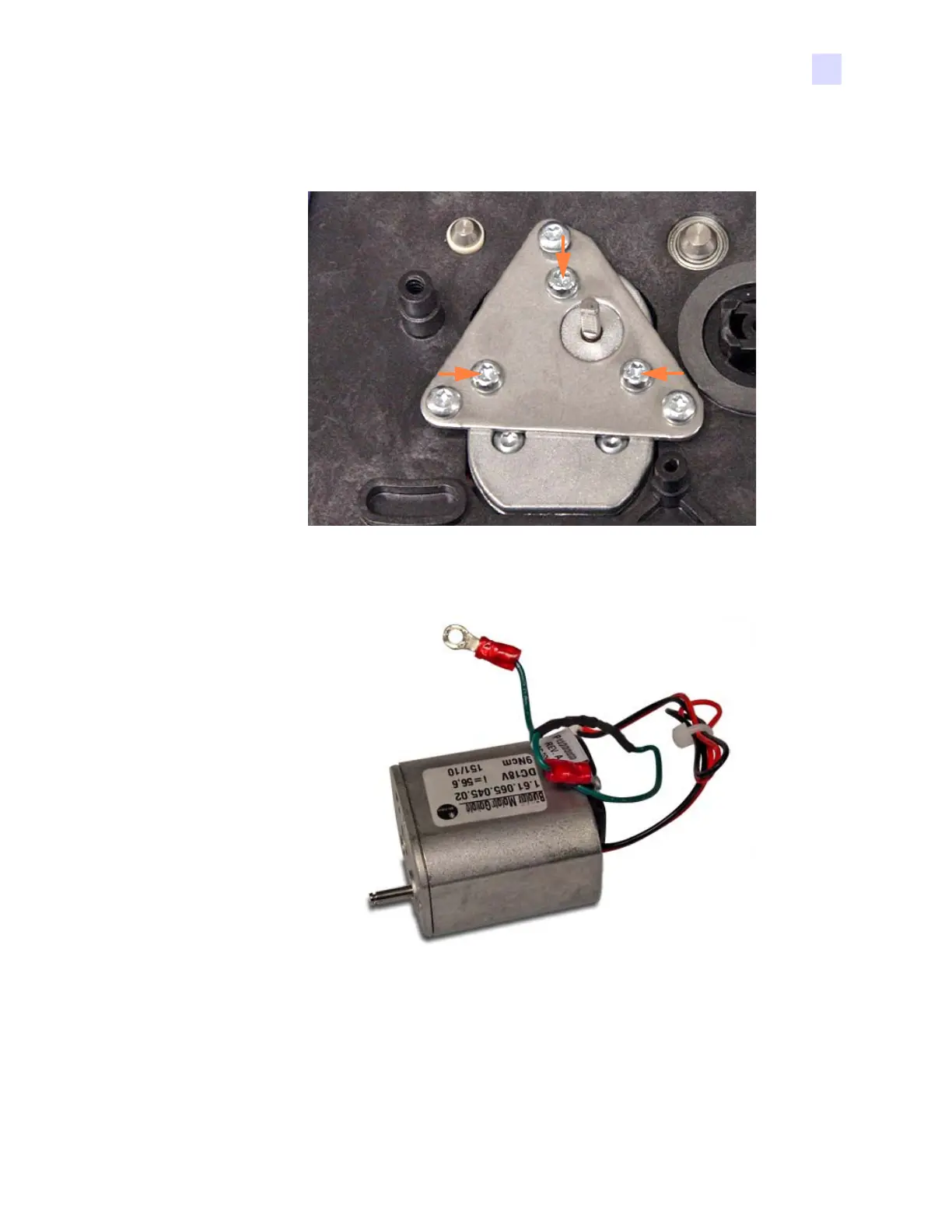

Step 4. With a TORX T10 driver, remove the three “inside” screws (SCR M3x10, 7.0 in-lb)
holding the motor to the Bracket; arrows below.
Step 5. Remove the Ribbon Take-Up Motor.
