156 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

5: Replacement Procedures

Procedures

Replacement

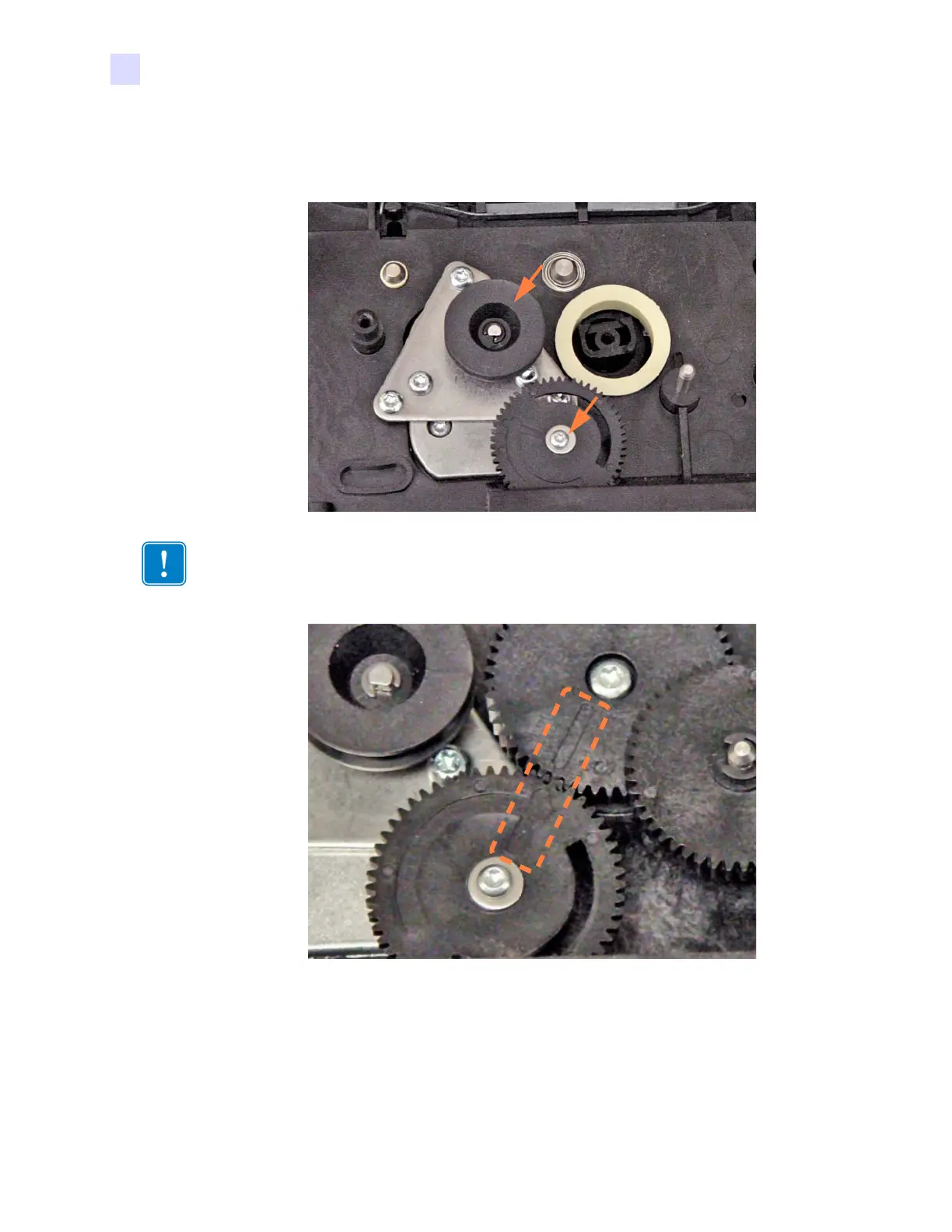

Install the Gear and Lower Pulley (arrows below).

Important • When installing the Gear, ensure that the grooves (outlined in orange below) are

aligned as indicated.
