5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 163

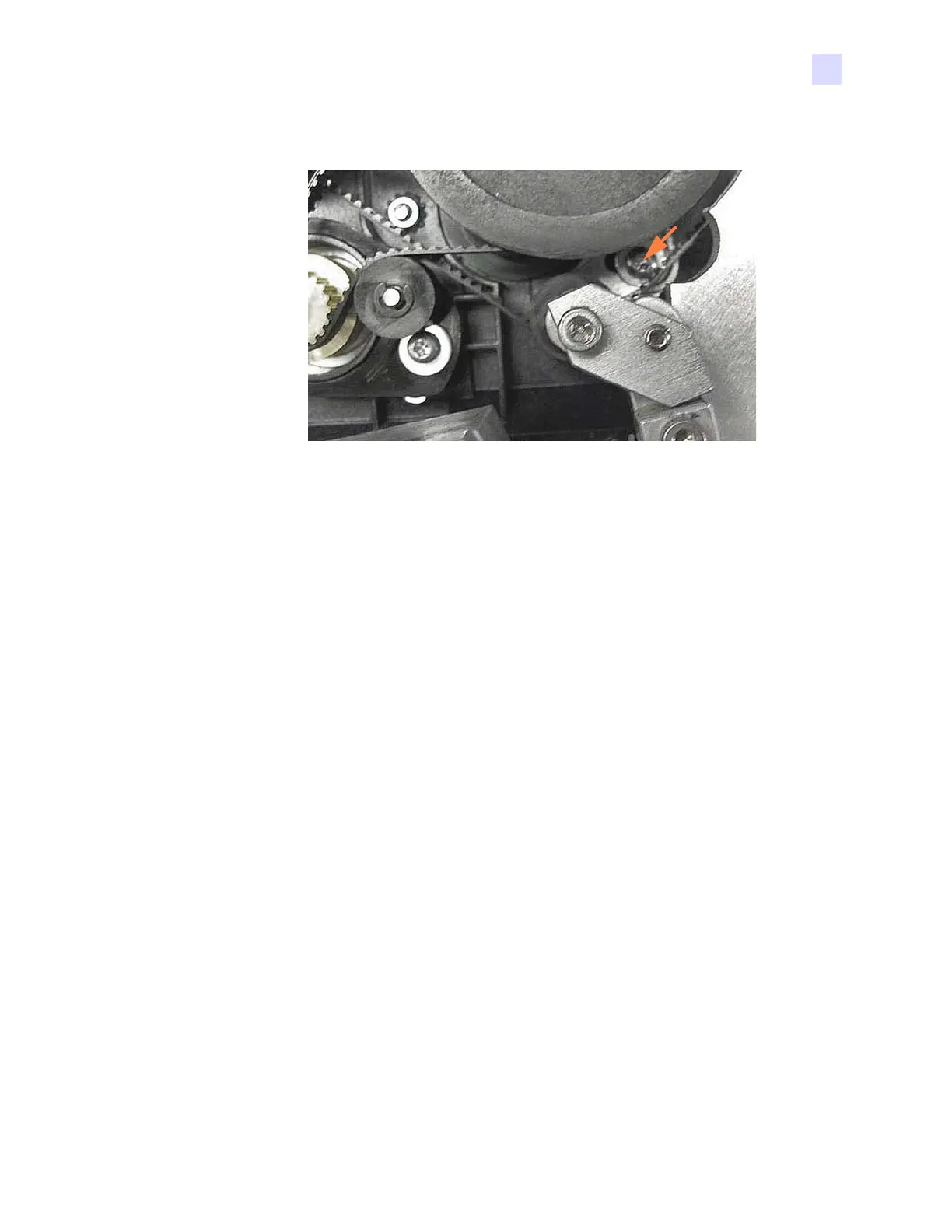

Step 4. With a TORX T10 driver, tighten the tensioner screw (7.0 in-lb); arrow below.
Step 5. Ensure that the Stepper Motor and associated gears and pulleys rotate freely as the
large pulley is turned.
Step 6. Refer to Appendix K for belt tensioning procedure.
