5: Replacement Procedures
Procedures
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 175

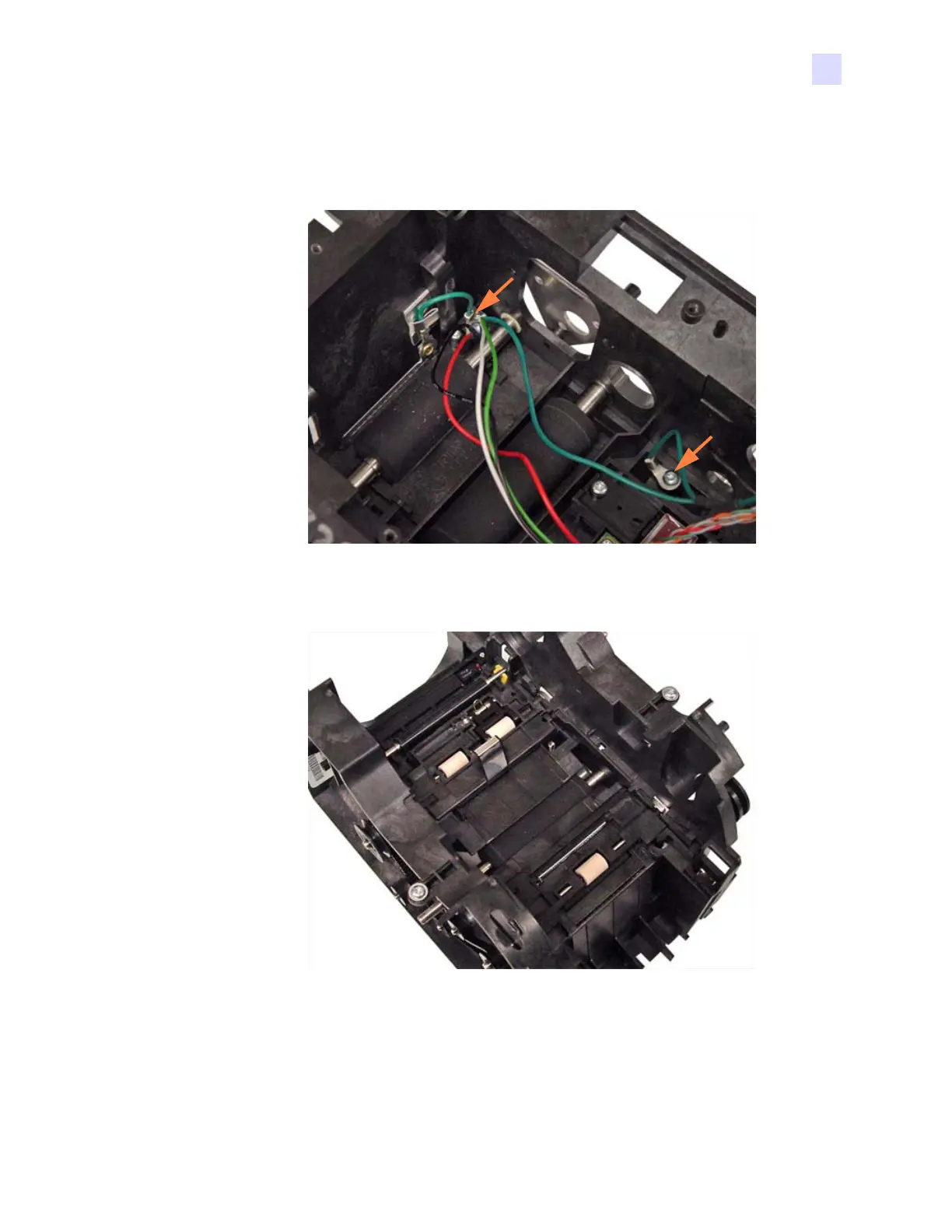

Step 4. With a TORX T10 driver, remove the screw (SCR, PLAST, 2-.25, 2.5 in-lb), left
arrow; remove the screw (SCR, PLAST, 4-.25L, 7.0 in-lb), right arrow; then
disconnect the ground wires.
Step 5. Turn the Print Engine over (for access from top).
