176 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

5: Replacement Procedures

Procedures

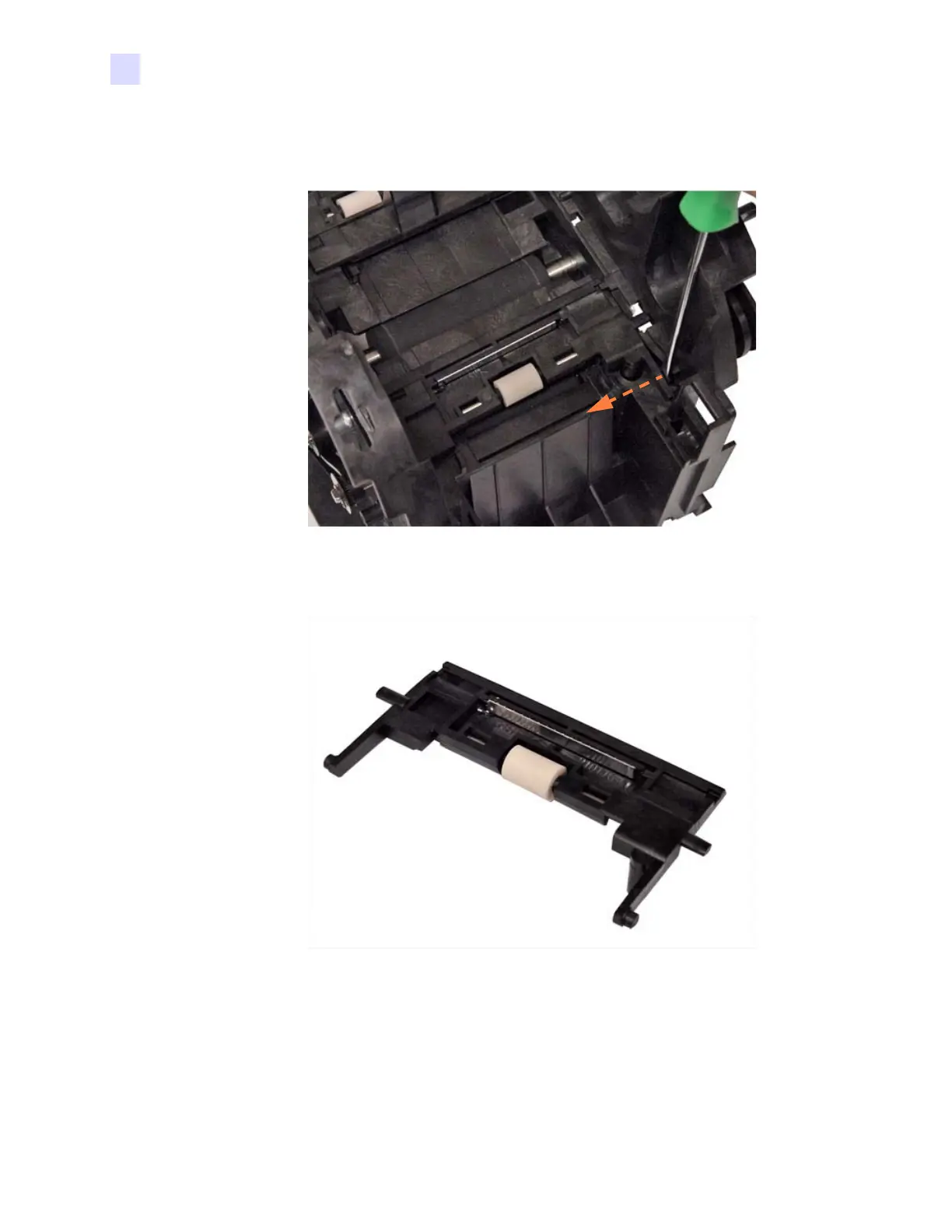

Step 6. With a flat-blade screwdriver, free the locking pins that hold the Front Pressure

Roller assembly in place.

Step 7. Remove the Front Pressure Roller assembly.
