234 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

G: Half-Panel Ribbon Operation

Step 3. Set Driver Printer Properties:

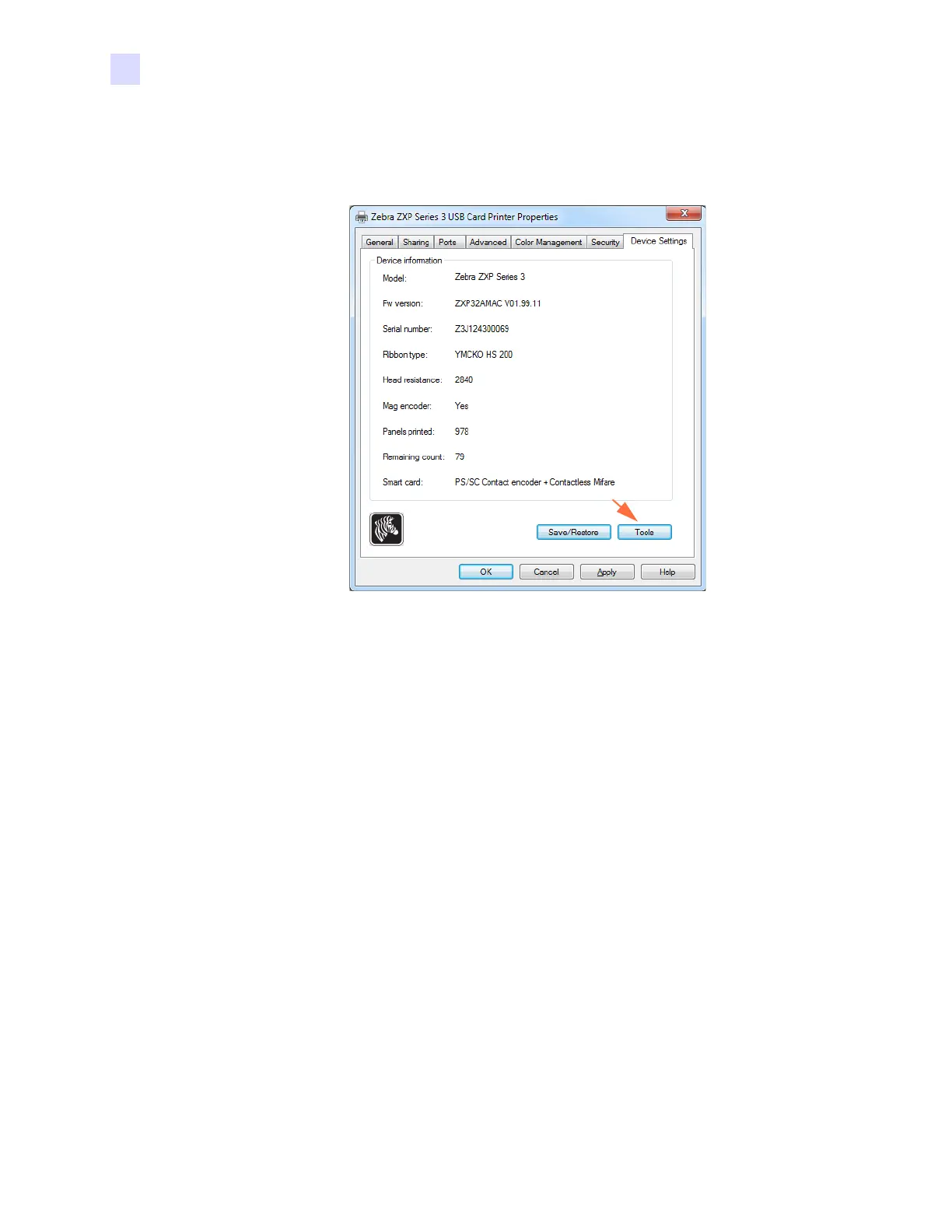

a. Select Printer properties > Device Settings tab.

b. Click the Tools button (arrow above). This will bring up the Tools dialog box.
