246 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

H: Upgrade Kit Instructions

Mag Encoder

Remove the Main PCBA

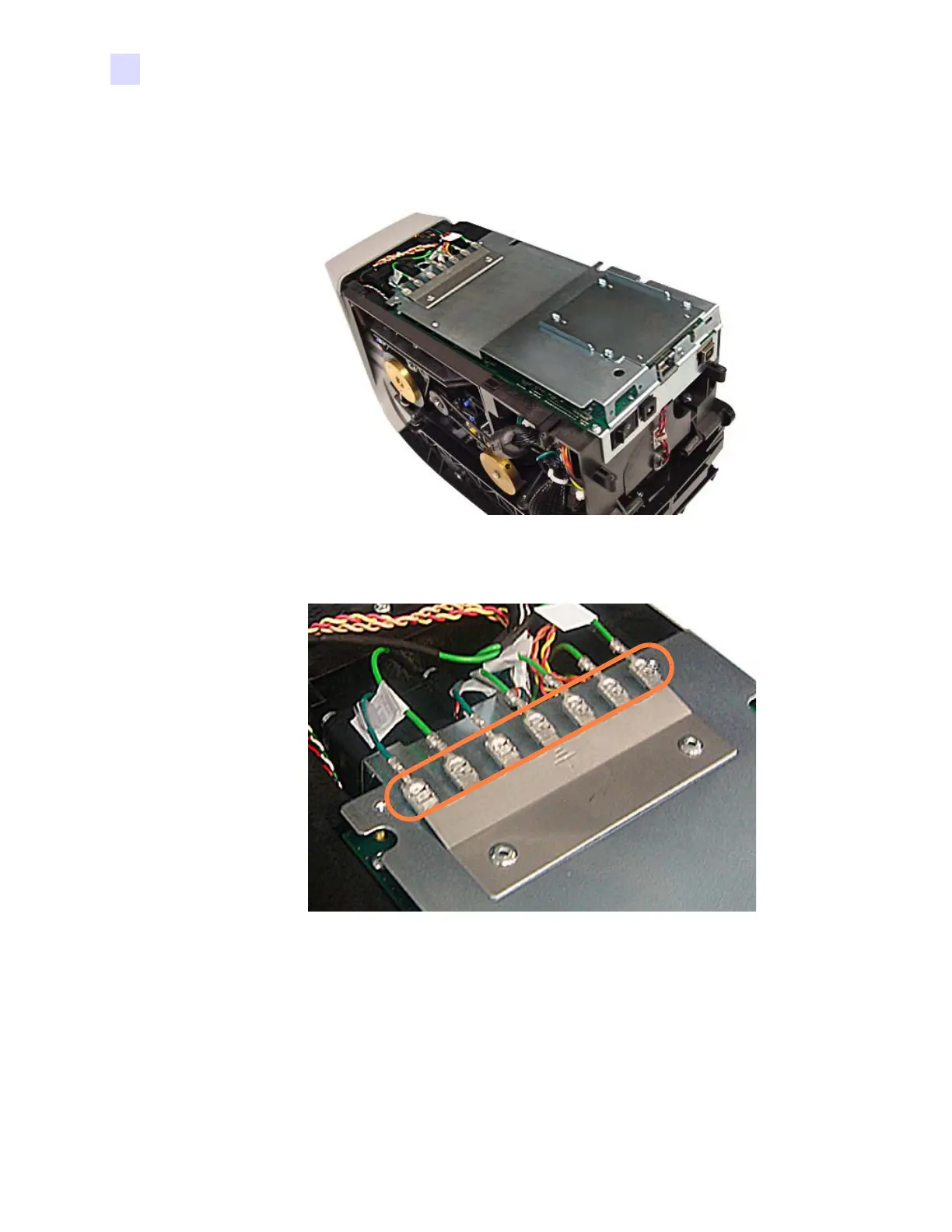

Step 1. With the Bottom Cover removed, the Main PCBA is visible and accessible.

Step 2. Remove the ground wires from the tabs (circled below) on the Ground Plate.
