Zebra ZXP Series 3 Service Manual

H: Upgrade Kit Instructions
Mag Encoder
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 247

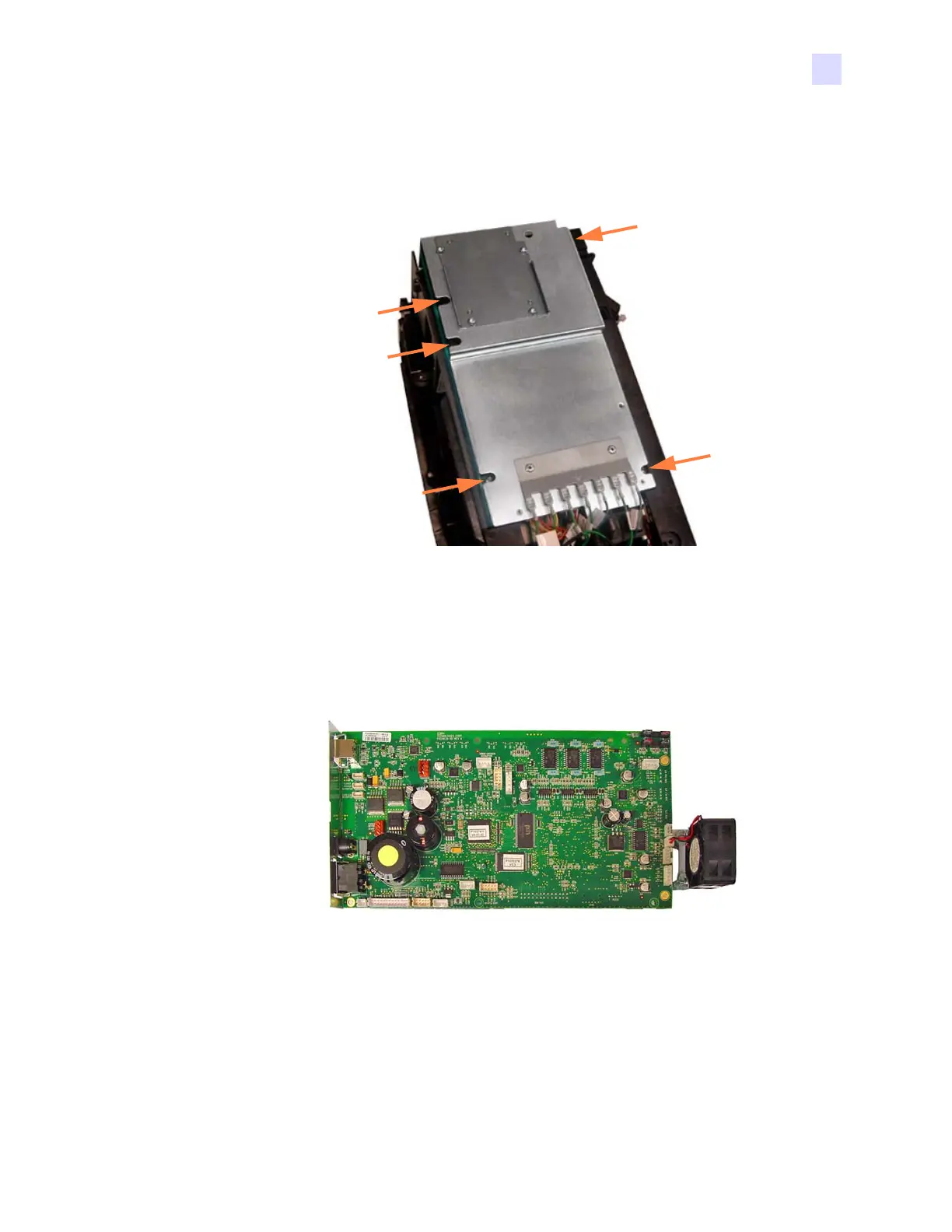

Step 3. With a TORX T10 driver, remove the five screws (arrows above) holding the
Main PCBA and Ground Plate in place. When reinstalling the Main PCBA and
Ground Plate, tighten the screws to 5.5 in-lbs.
Step 4. If necessary, cut the cable ties to free the cables connected to the Main PABA.
Step 5. Carefully lift the Main
PCBA (and Ground Plate) out of the Frame, and disconnect
the various wires and connectors that attach to the Main
PCBA. Be careful to avoid
damaging any of them.
Step 6. Set the Main PCBA aside.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
