Zebra ZXP Series 3 Service Manual

248 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Mag Encoder

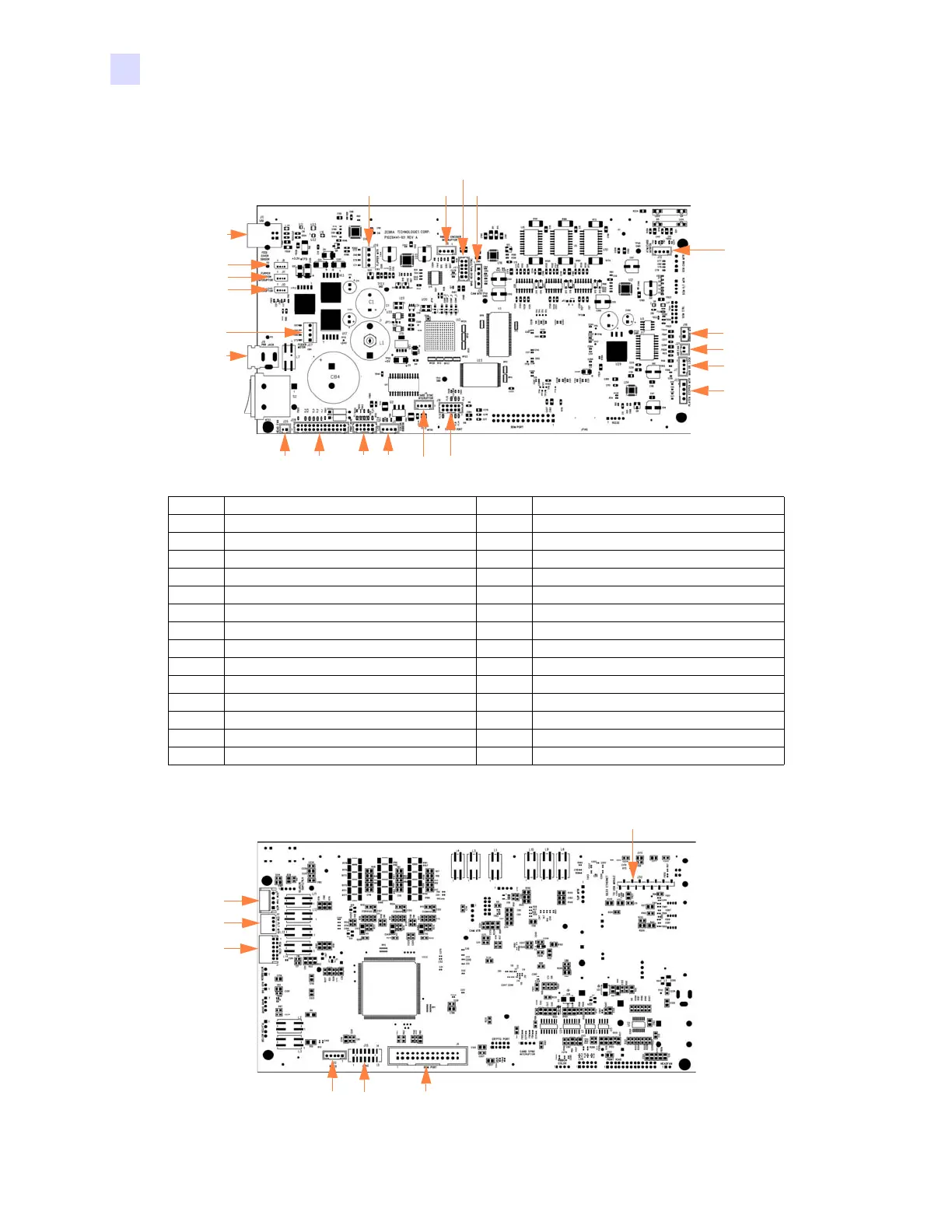

Step 7. The following layouts show the connections to the Main PCBA.
J1
SCM CTRL (Note 1)
J16
RIBBON MTR
J2
None
J17
SCM PLT MTR (Note 1)
J3
None
J18
CRYPTO PORT
J4
BDM PORT (Note 1)
J19
PWR JACK
J5
COLOR RIBBON
J20
RS232 (Note 1)
J6
RIBBON ENCODER INTERUPTOR
J21
AIR FAN
J7
MAIN DRIVE LOCK
J22
PLATEN STEPPER MTR
J8
FEED COVER SENSOR
J23
MAG HEAD / MAG SYNC
J9
CARD SYNC INTERUPTOR
J24
LCD
J10
CARD LOAD INTERUPTOR
J25
HEAD FAN
J11
FLIPPER POSITION INTERUPTOR
J26
CAM MTR
J12
ATM CARD INTRPTR
J27
FEEDER MOTOR
J13
USB
J28
PRNT HEAD
J14
SCM CAM MTR (Note 1)
J29
FLIPPER MTR
J15
JTAG (Note 1)
J30
ETHERNET TO USB MODULE (Note 1)
Note 1: Bottom side of PCBA
J16
J29
J9 J18J5J24J28J25
J6
J23
J26
J13
J8
J11
J10
J19
J27
J21
J12
J7
J22
TOP SIDE
BOTTOM SIDE
J1
J14
J15J20
J17
J30
J4

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
