H: Upgrade Kit Instructions
Mag Encoder
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 249

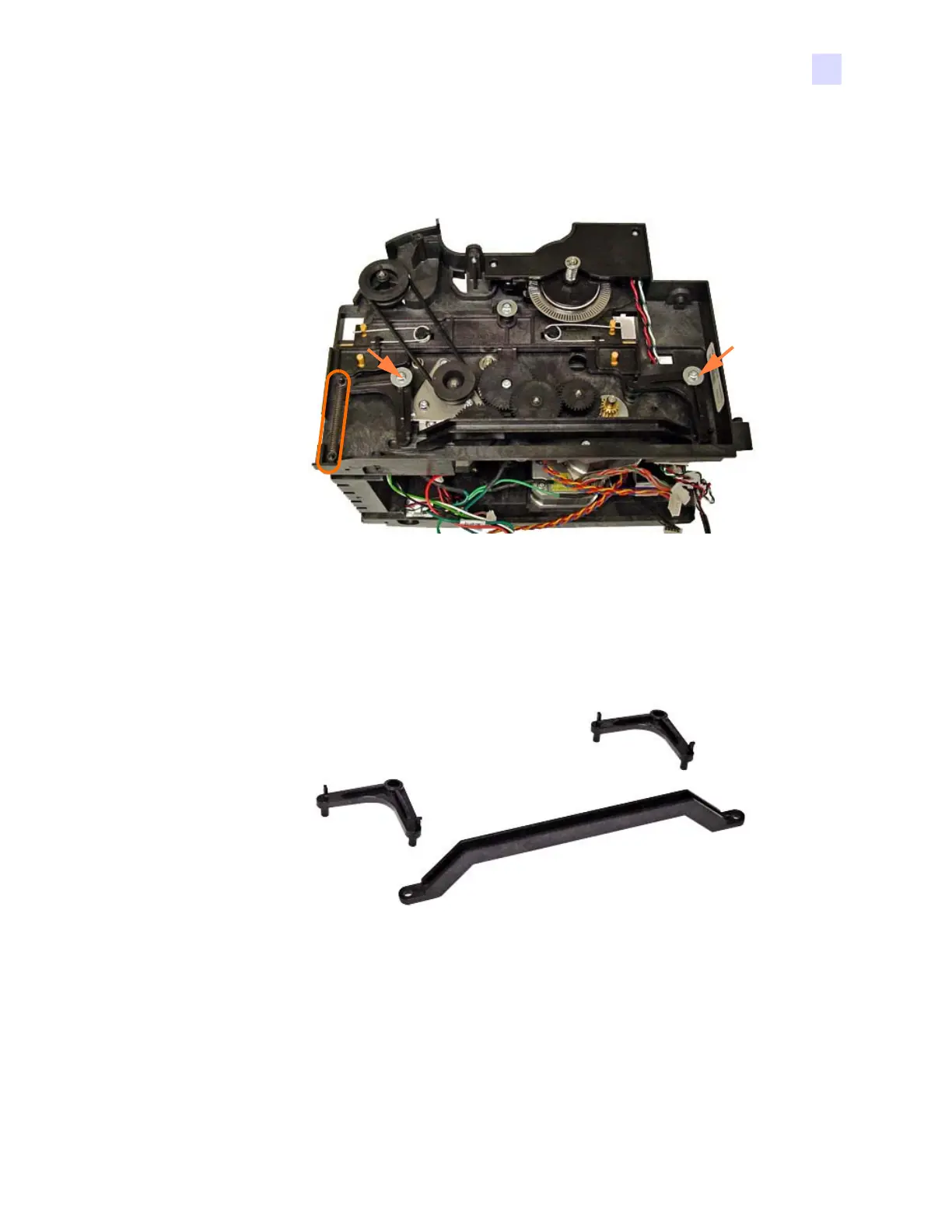

Remove the Right Side Linkage
Step 1. Remove the Linkage Spring (circled below).
Step 2. With a TORX T10 driver, remove the two screws and washers (arrows above)
holding the Linkage to the Frame. When reinstalling the linkage, tighten the
screws to 7.0 in-lbs.
Step 3. Remove the Linkage (3 pieces).
