250 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Mag Encoder
Remove the Right Side Rocker

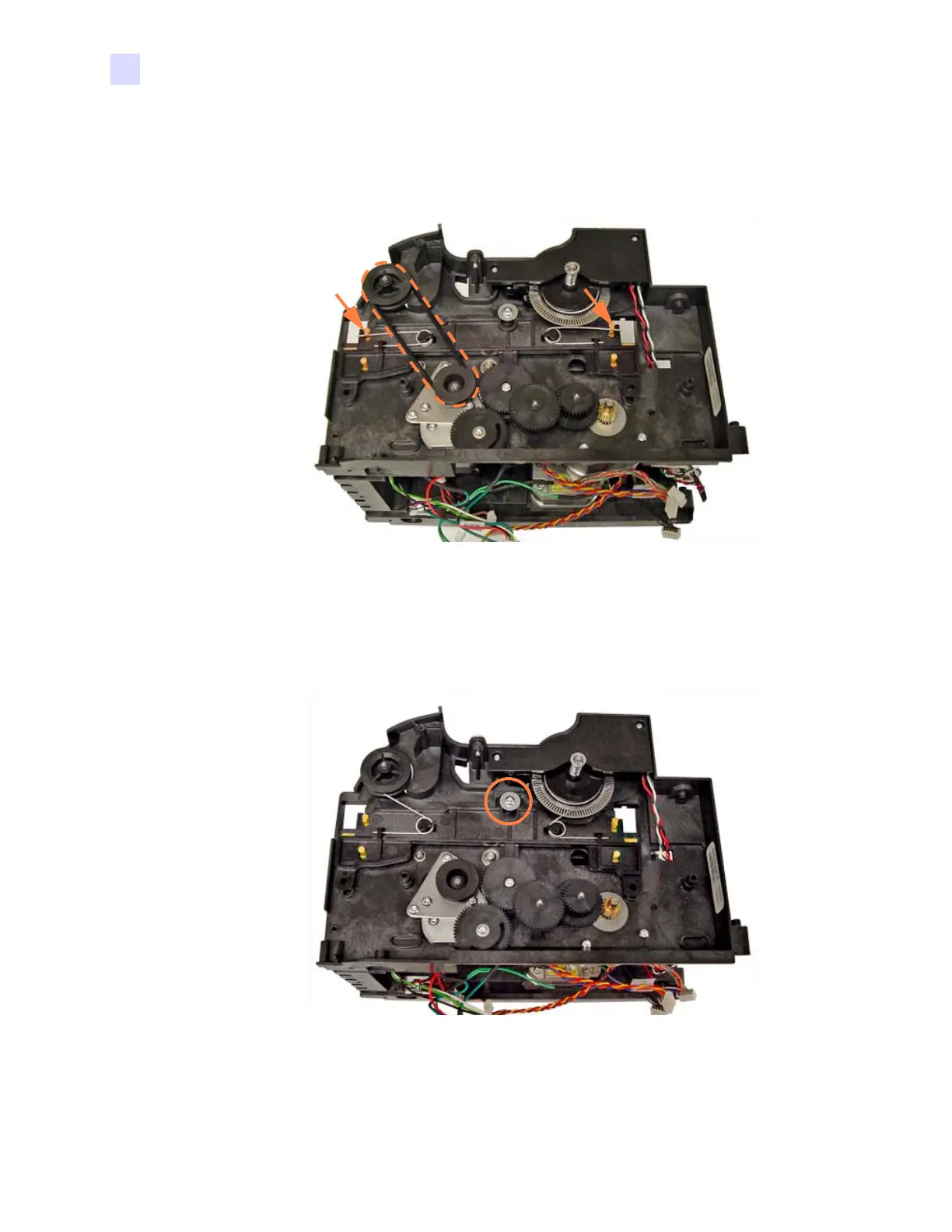

Step 1. Remove the O-ring belt (dashed circled below).
Step 2. Release the two Rocker Springs (arrows above).
Step 3. With a TORX T10 driver, remove the screw and washer (circled below) holding the
Rocker in place. When reinstalling the rocker, tighten the screw to 7.0 in-lbs.
