Zebra ZXP Series 3 Service Manual

H: Upgrade Kit Instructions
Mag Encoder
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 265

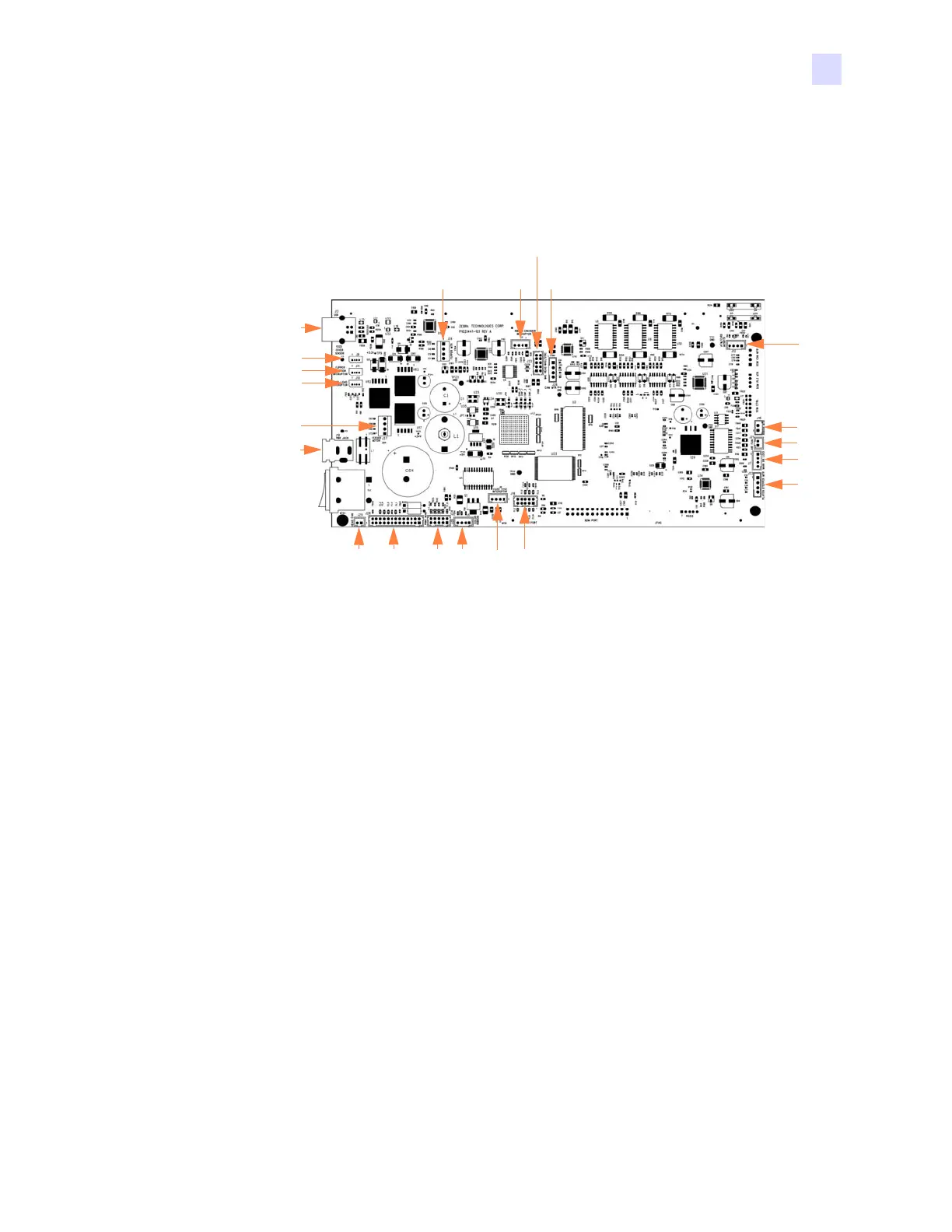

Main PCBA:
Reconnect all the plugs, and install the Main PCBA. Note that the Mag Head plug
connects to J23.
Covers:
Step 1. Install the Rear Cover.
Step 2. Install the Bottom Cover.
Step 3. Install the Right Side Cover.
Step 4. Install the Left Side Cover.
Adjustments
Refer to Appendix K for belt tensioning procedure.
Note the following when reinstalling the Gears
Step 1. Slide the gears on their respective shafts in the order indicated below.
J16
J29
J9 J18J5J24J28J25
J6
J23
J26
J13
J8
J11
J10
J19
J27
J21
J12
J7
J22
TOP SIDE

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
