266 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Mag Encoder

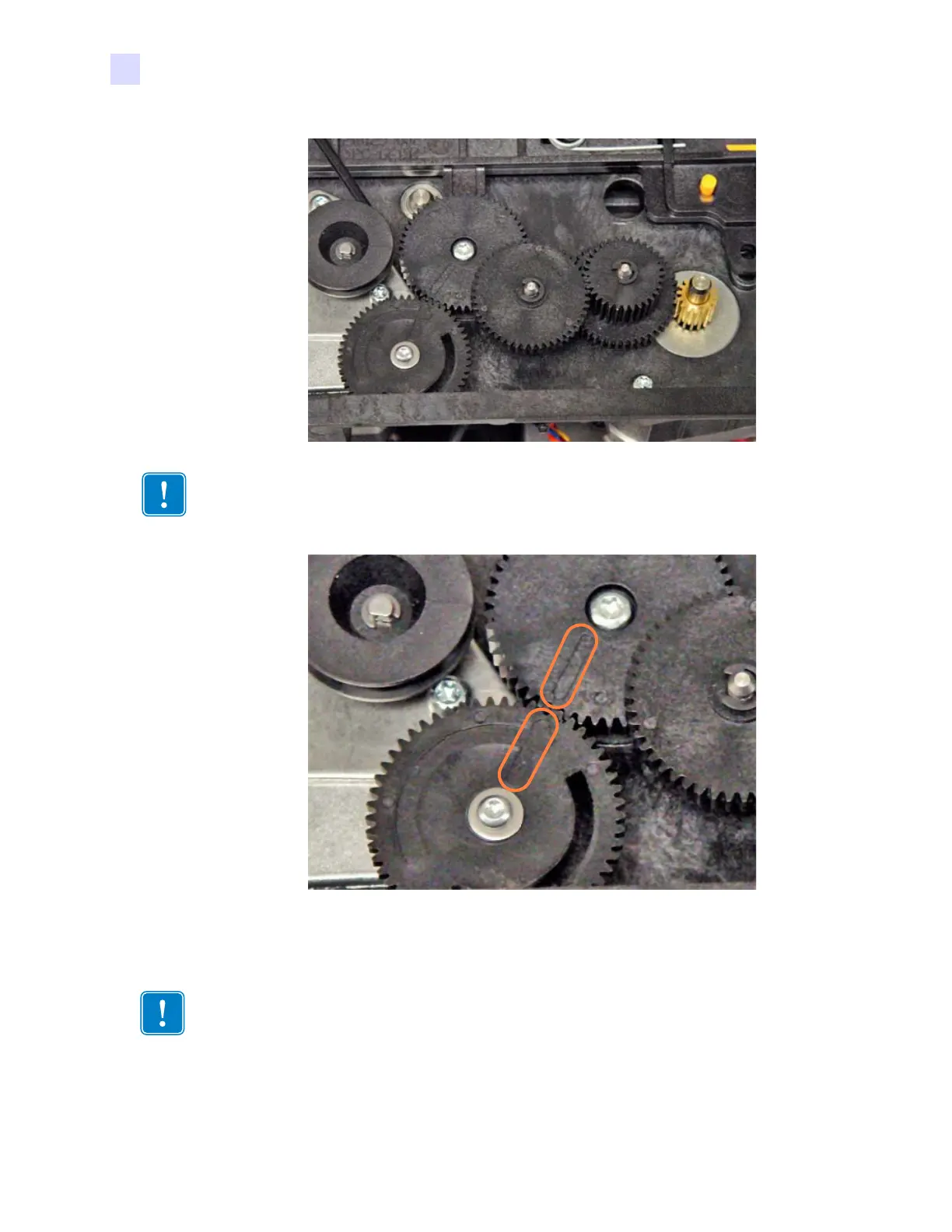

Step 2. Then lock the gears in place (screws for Gears #1 and #2, clips for Gears #3 and #4)
in the same order. Tighten the screws to 4.0 in-lbs.
Important • When installing the Gears #1 and #2, ensure that the grooves (outlined in orange
below) are aligned as indicated.
Important • Refer to Appendix I for configuration procedure.
