H: Upgrade Kit Instructions

Ethernet PCBA

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 271

Installation

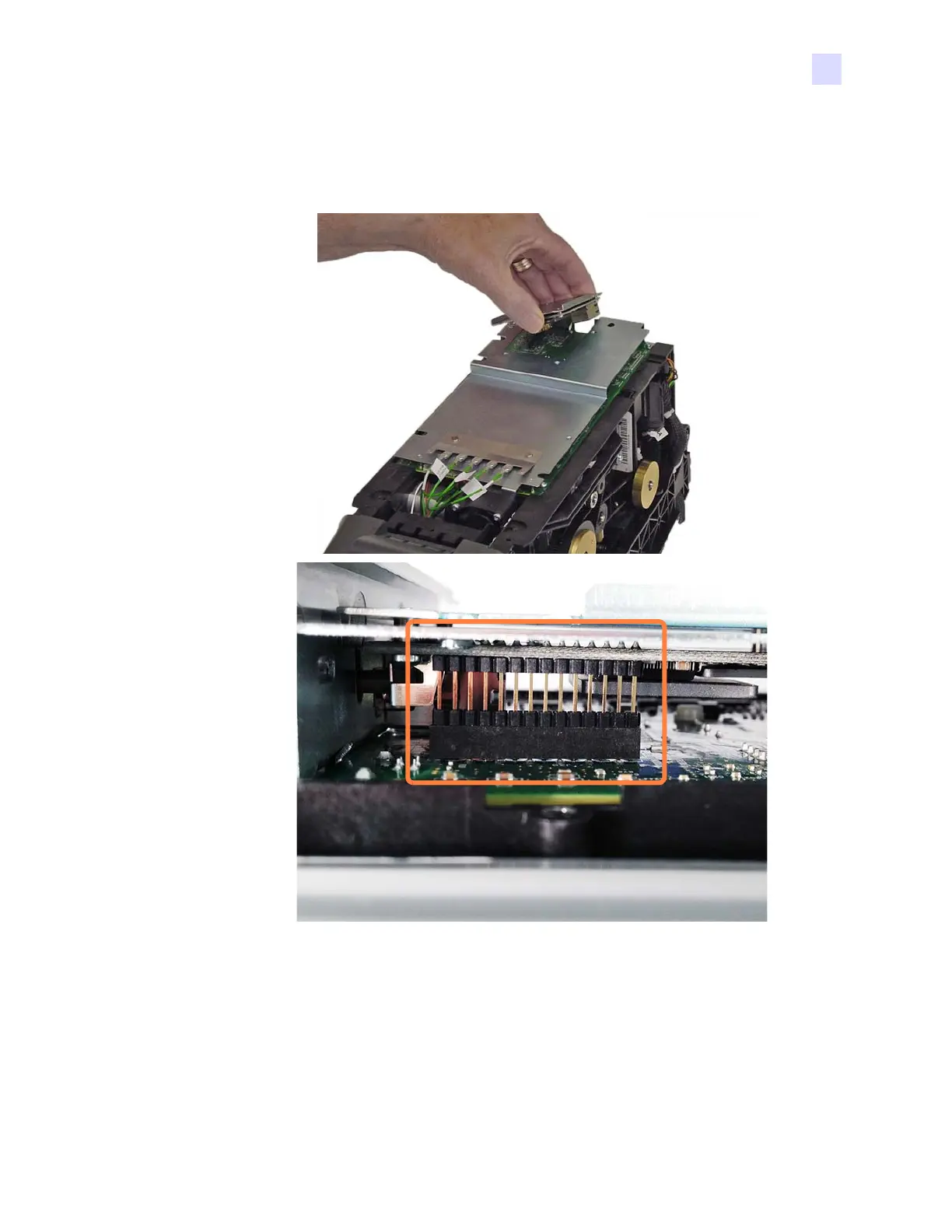

Step 1. Place Ethernet PCBA on the Ground Plate being careful to align the connector.
