H: Upgrade Kit Instructions
Security Lock
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 275
Preparation
Remove the Top Cover

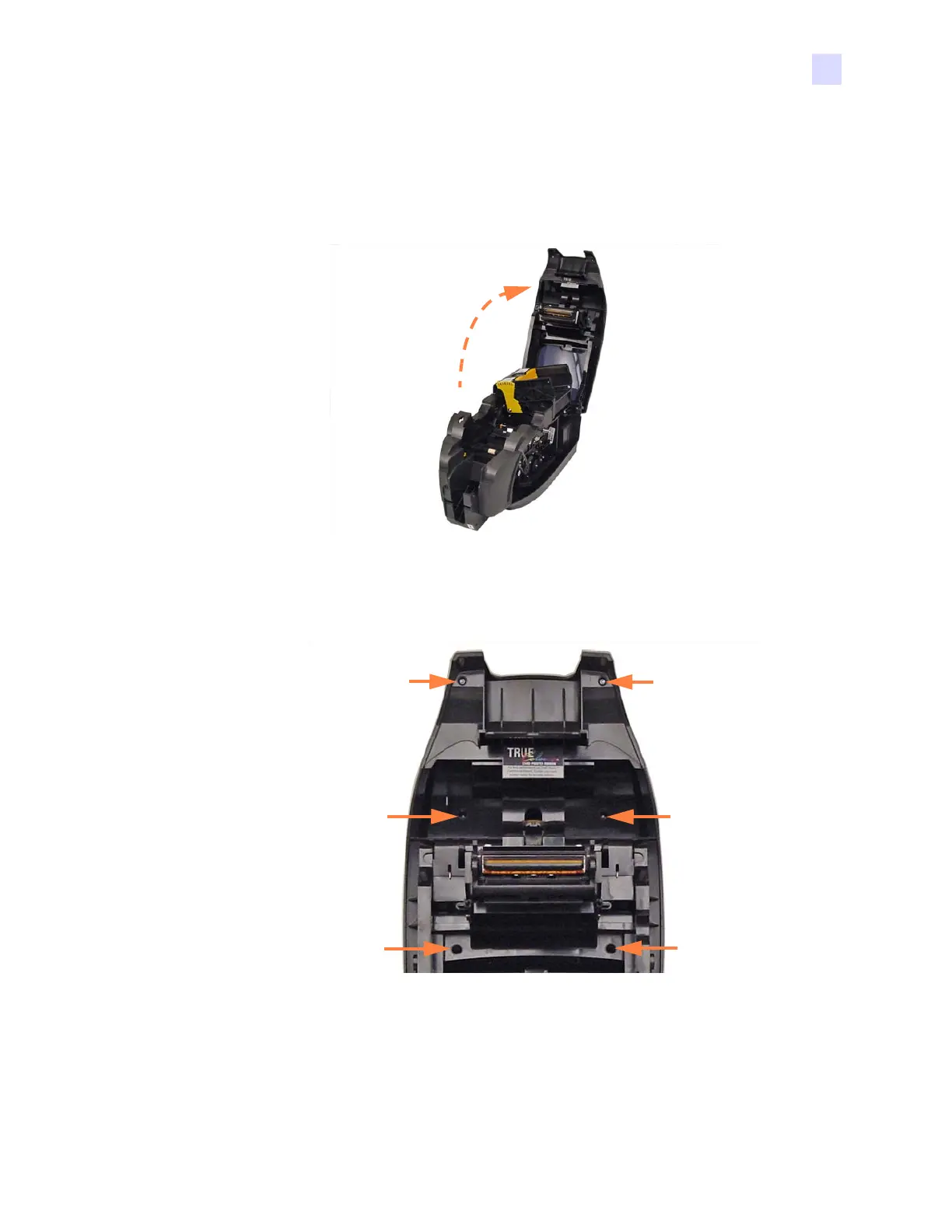

Step 1. Press the access button, and raise the Lid.
Step 2. With a TORX T10 driver, remove the six screws (arrows below) that hold the Top
Cover to the Lid. When reinstalling the screws, tighten them to 7.0 in-lb.
Step 3. Lower, but do not latch, the Lid.
