H: Upgrade Kit Instructions

Security Lock

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 277

Installation

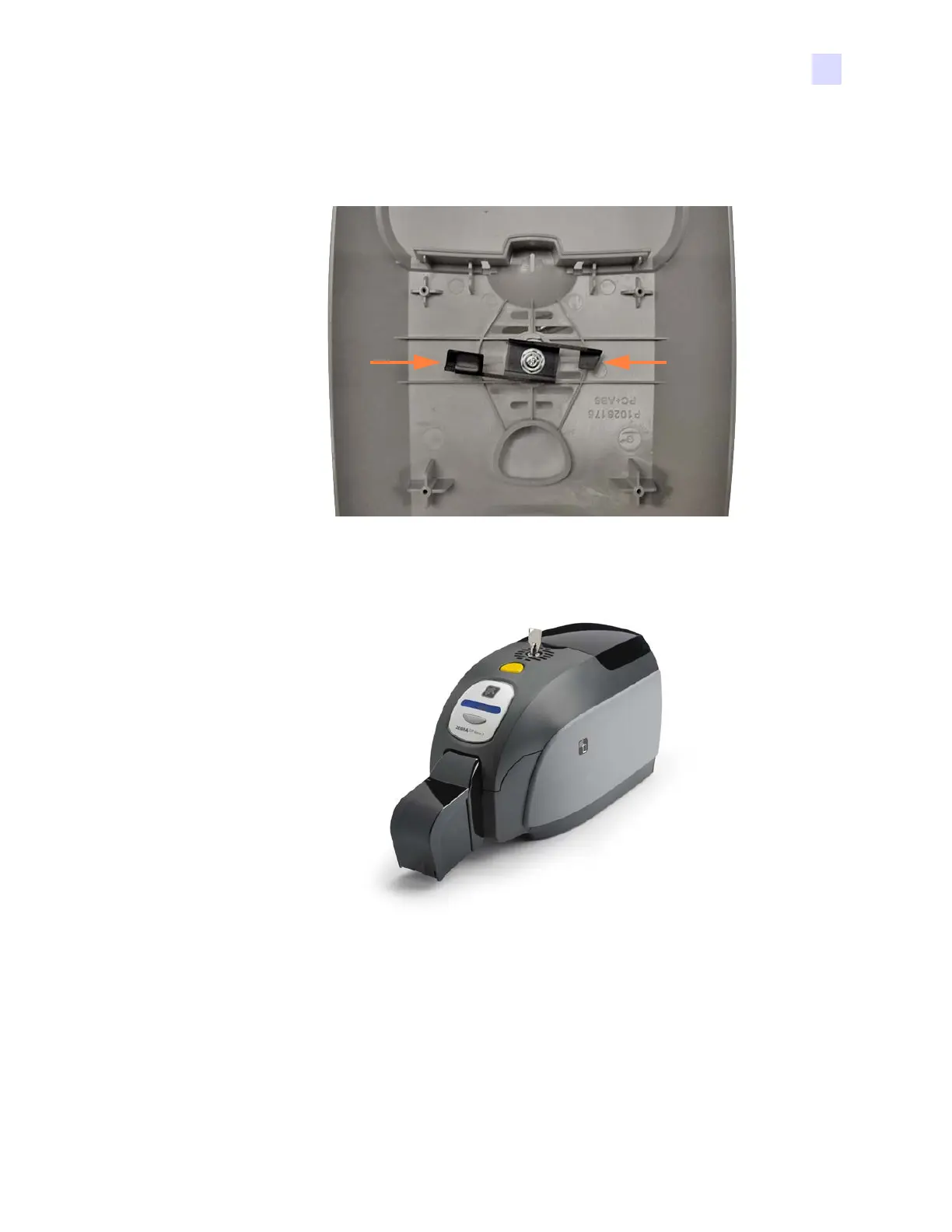

Step 1. Ensure that the Lock is UNLOCKED before installing the replacement Top Cover.

Step 2. Installation of the Top Cover is performed by reversing the removal steps.
