Zebra ZXP Series 3 Service Manual

290 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Contact Station

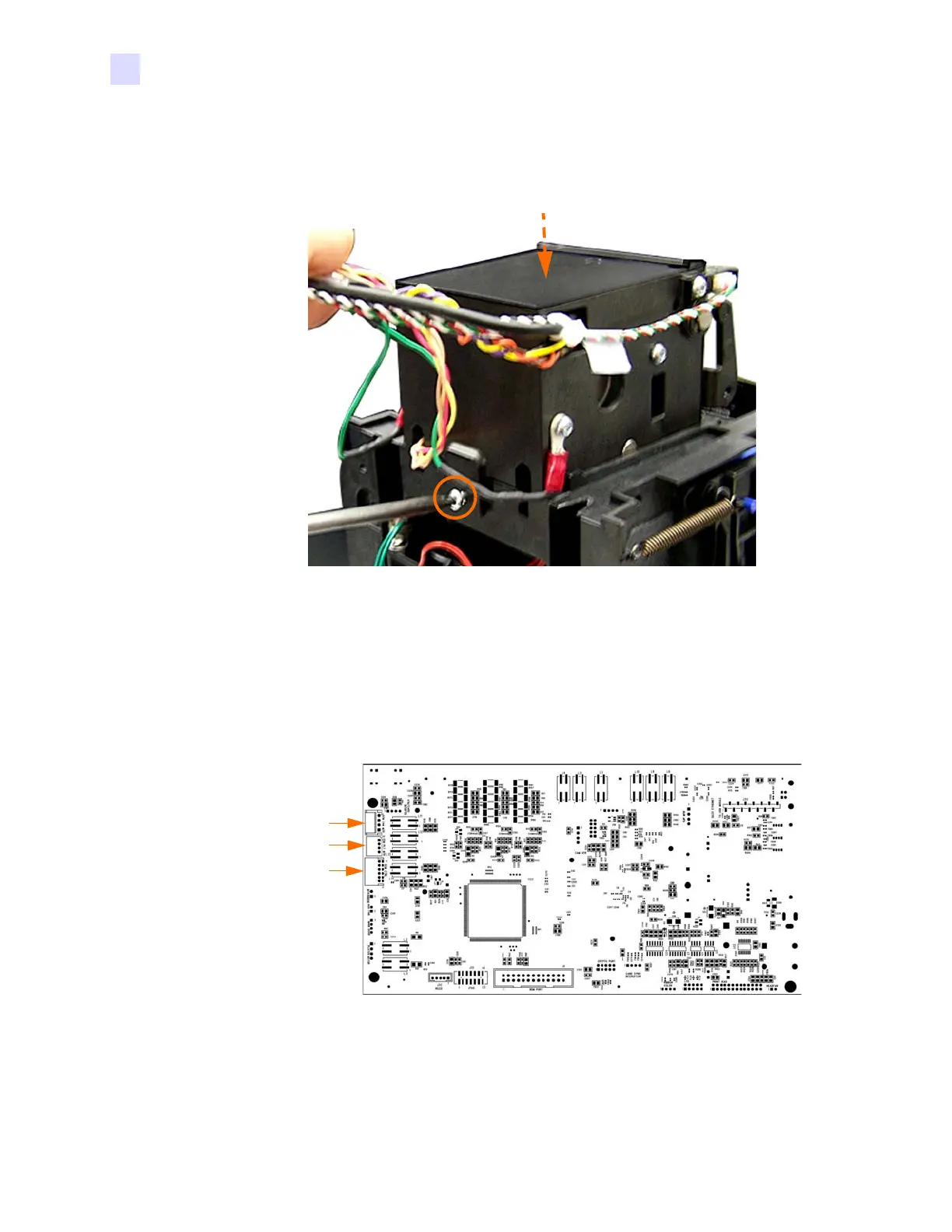

Step 6. Connect the DB9 connector cable to the connector on the CSM.
Step 7. Install the CSM by inserting the two hooks (on the CSM) into base slots in
the Printer.
Step 8. With a TORX T10 driver, install the screw (circled above) that holds the
CSM in place. Tighten the screw to 5.5 in-lb.
Step 9. Carefully plug in the three connectors from the CSM into J1, J14, and J17 on the
Main PCBA (arrows below). Note that the connectors are keyed.
BOTTOM SIDE
J1
J14
J17

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
