H: Upgrade Kit Instructions
Contact Station
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 289

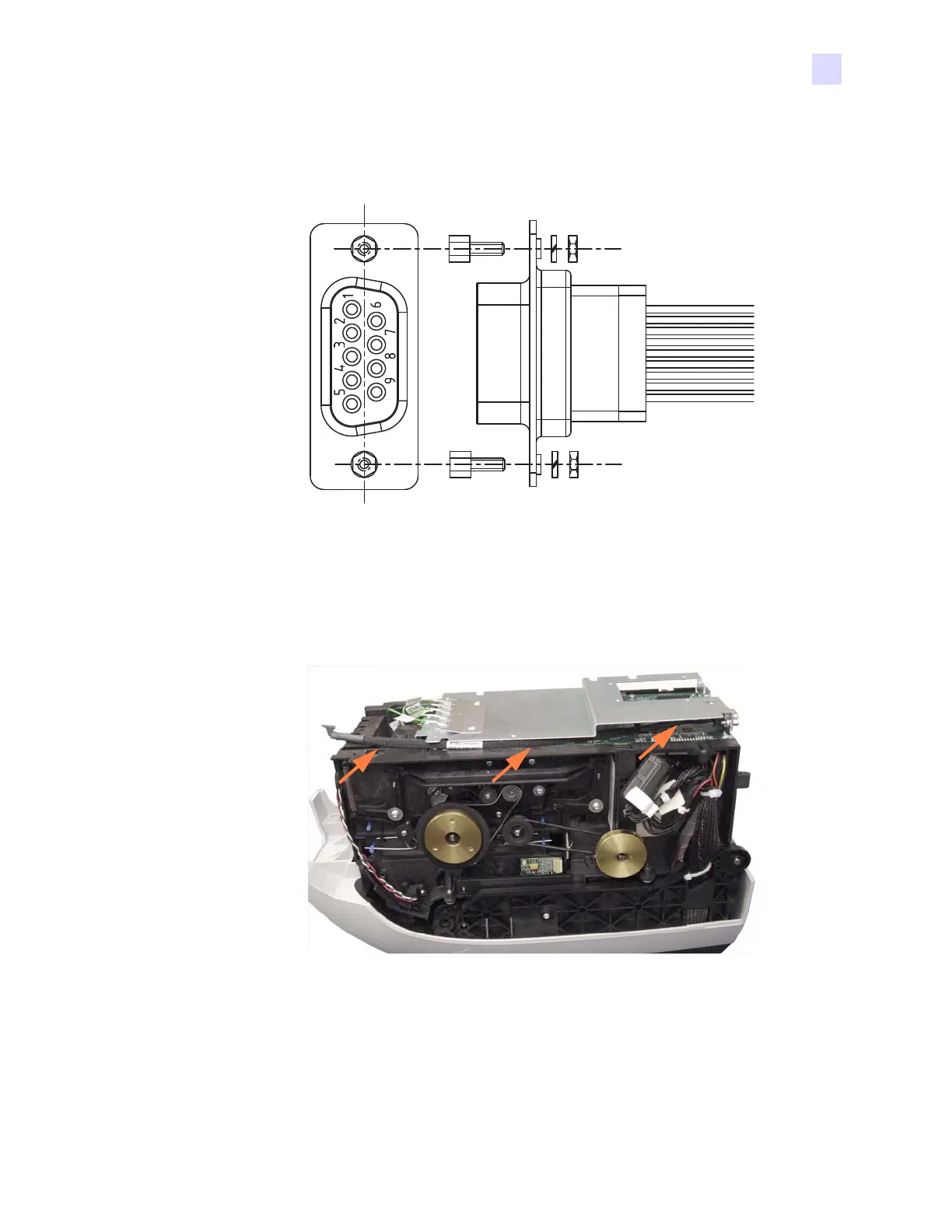

Step 4. Attach the DB9 connector to the Ground Plate with the hardware (2 screws,
2 washers, and 2 nuts) as indicated below.
Step 5. Route the DB9 connector cable along the side of the Main PCBA; position the cable
under the Ground Plate.
