288 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Contact Station
Installation

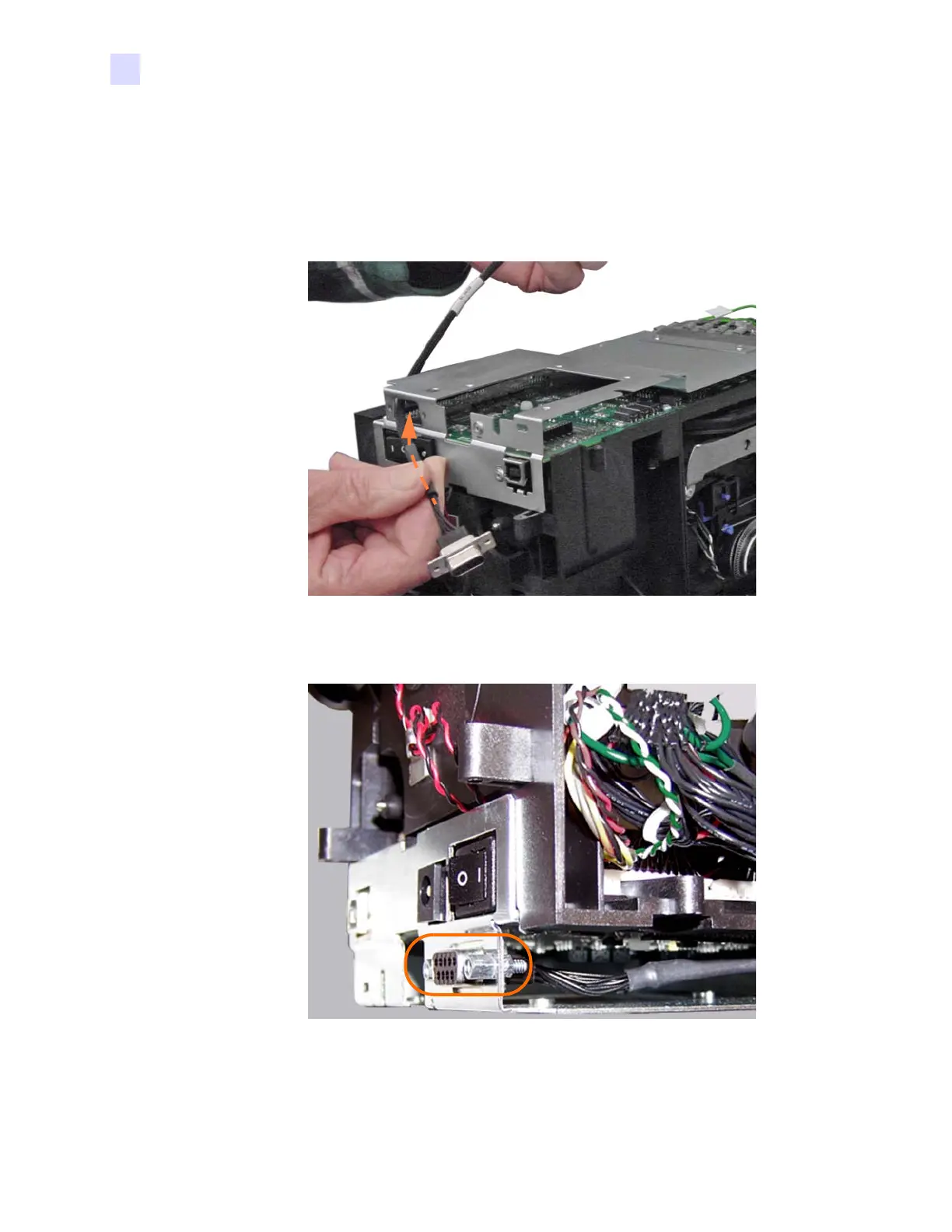

Step 1. Locate the cable with the DB9 connector. If not already done, disconnect the cable
from the Contact Station Module (CSM).
Step 2. Slide the cable through the mounting hole in the Ground Plate.
Step 3. Position the DB9 connector (circled below) in the cutout in the Ground Plate.
