Zebra ZXP Series 3 Service Manual

H: Upgrade Kit Instructions
Manual Card Feed Module Upgrade Kit Instructions
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 297
Setting Up the Printer Driver
Card Setup tab allows the user to set the single card feed mode.

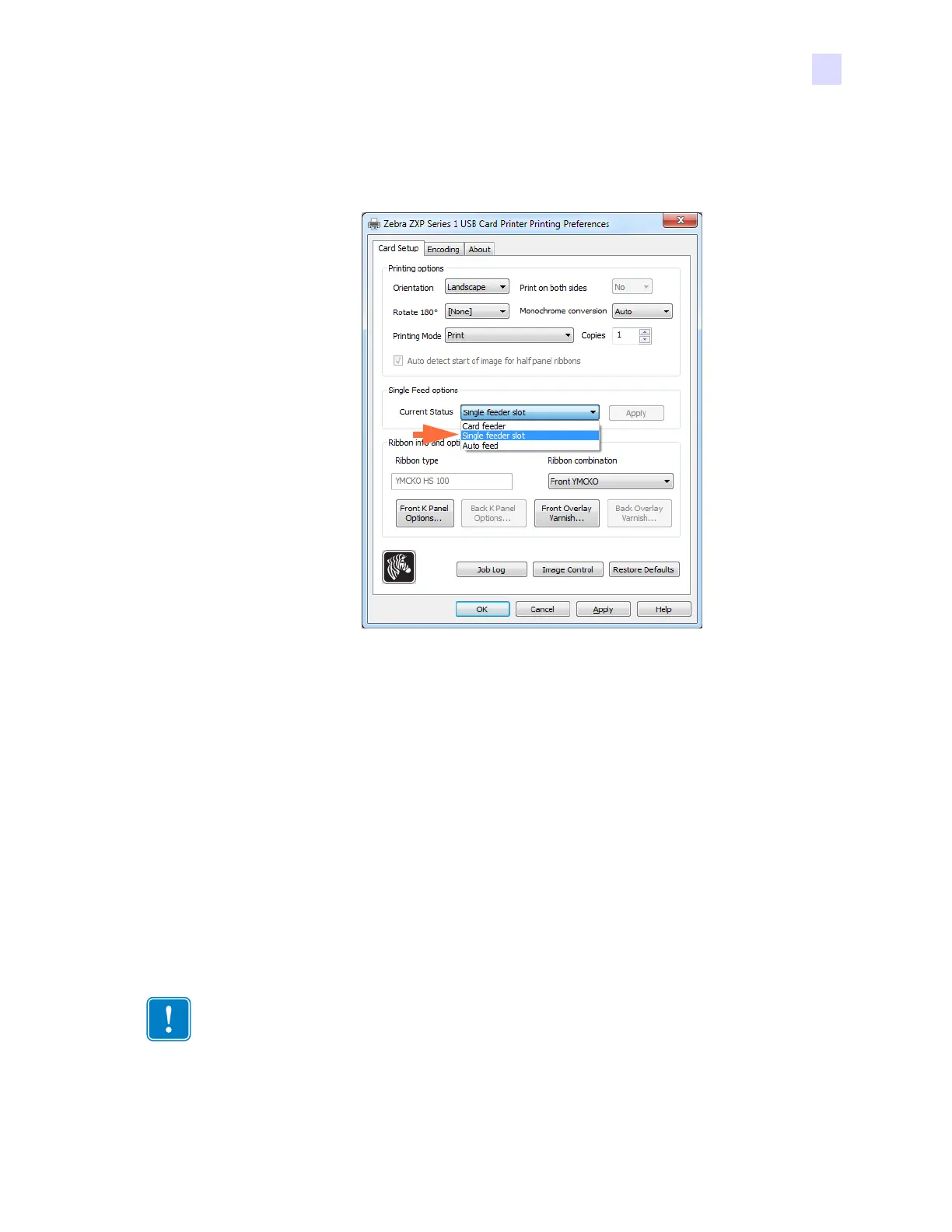

Step 1. Make the appropriate Single Feed option selection from the Current Status
dropdown menu:
• Card feeder: The printer will attempt to a pull a card from the Card Feeder.
If the Card Feeder is empty, the printer will generate an
OUT OF CARDS
error message.
• Single feeder slot: For each print job, the printer will generate an
INSERT
CARD
message. Any cards in the Card Feeder will not be used.
• Auto feed: The printer will attempt to feed cards from Card Feeder first. If
Card Feeder is empty, the printer will generate an
INSERT CARD message.
No
OUT OF CARDS error message will be generated.
Step 2. Click the Apply button, then click the OK button.
Important • You do not have to remove the components of the Single-Card Feed Kit in order
to operate in normal mode (printing cards from the Card Feeder).

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
