I: Printer Configuration
Step 1. Determine the configuration value. Using the table below, add the values for all
options installed in the Printer.
For example, a Printer with a Contact Station and the Ethernet option would have a
configuration value of 34 (32 for the Contact Station + 2 for the Ethernet).

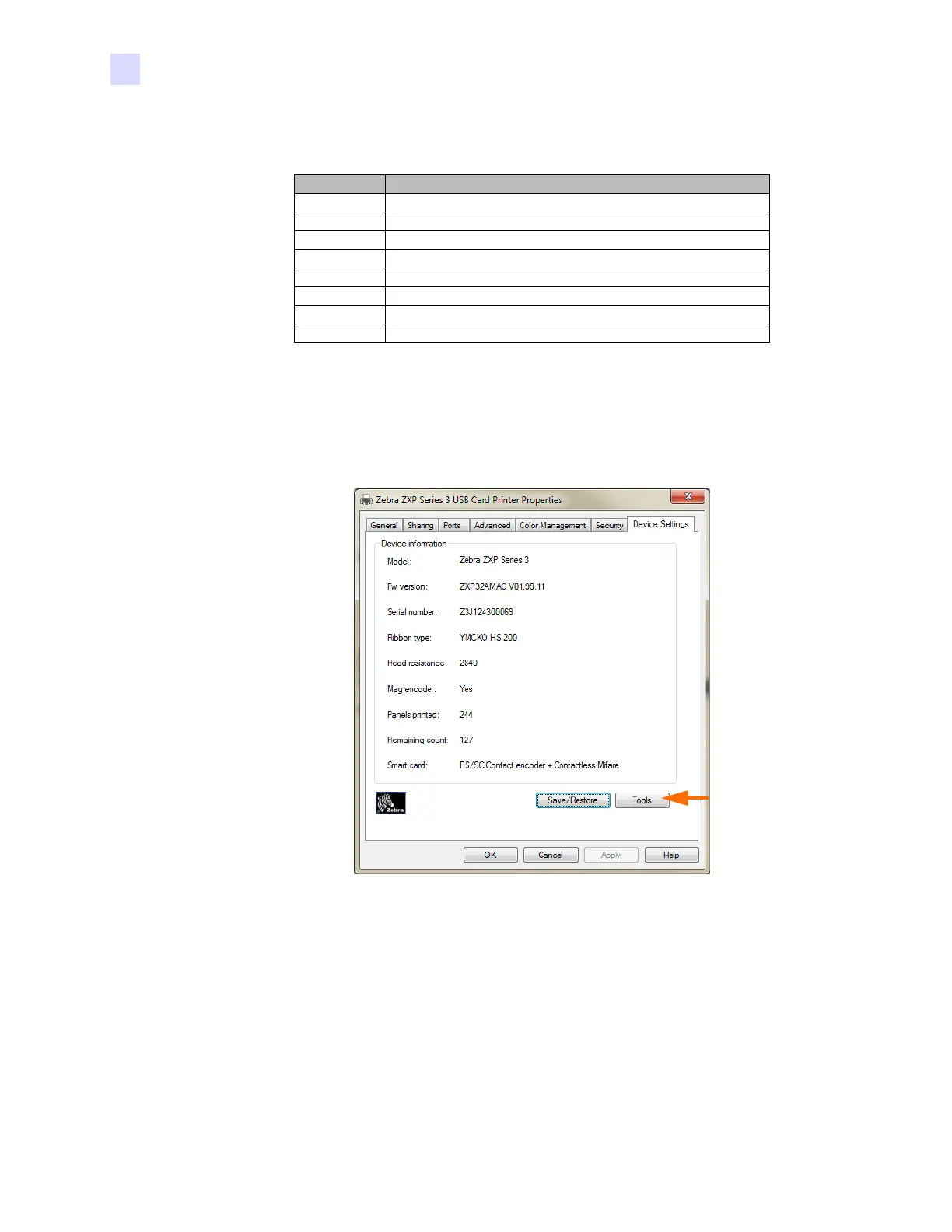

Step 2. Select Start > Devices and Printers. Right click on the Zebra ZXP Card Printer
listing. Select Printer properties > Device Settings.
Step 3. Click on the Tools button (arrow above).
Step 4. This brings up the Tools display.
VALUE OPTION INSTALLED
1 Mag Encoder
2 Ethernet
4 Reserved
8 Smart Card Module
16 Enclosure Lock
32 Contact Station Module
64 Reserved
128 Manual Card Feed Module

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
