J: Spares List

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 325

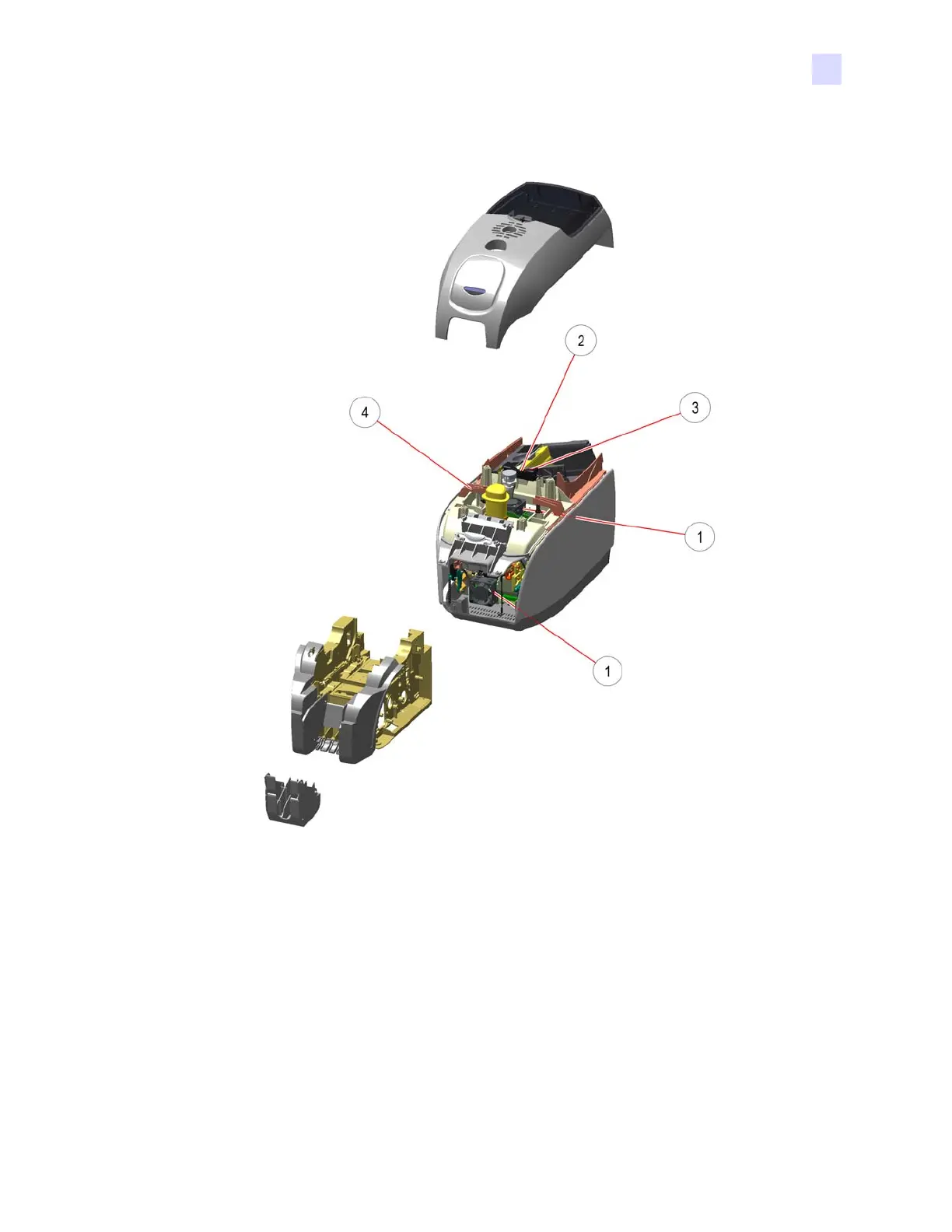

# AftermarketKitP1031925‐xxx Qty

1 ‐071CoolingFans 2

2 ‐038LatchforFeeder 1

3 ‐053FeederCoverSensor 1

4 ‐235InnerTopAssembly 1
