J: Spares List

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 327

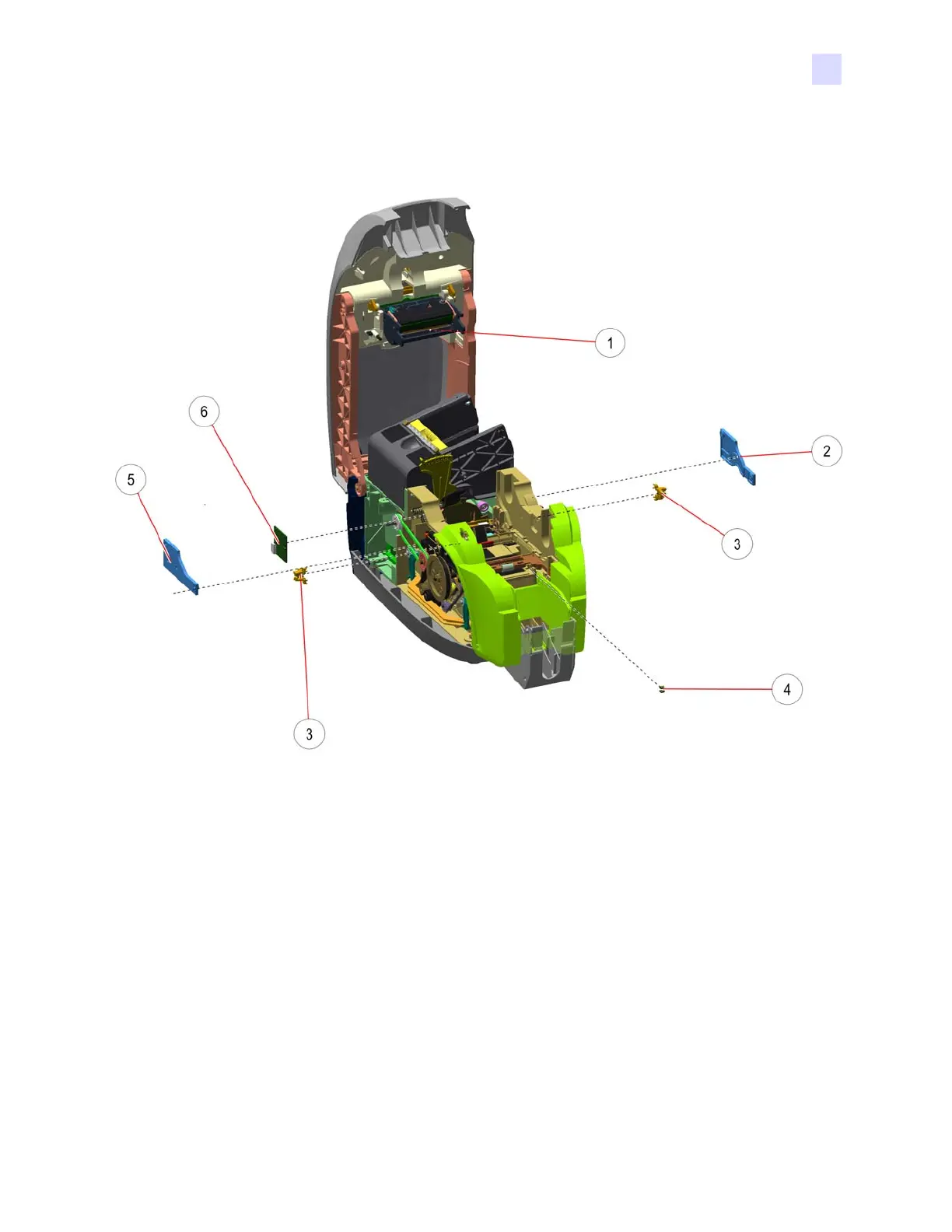

# AftermarketKitP1031925‐xxx Qty

1 ‐070PrintheadAssembly 1

2partof‐047CoversforFrame 1

3 ‐015LidandFrameSensors 2

4 ‐014ATMSensor 1

5partof‐047CoversforFrame 1

6 ‐009CryptographicPCBA 1
