328 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

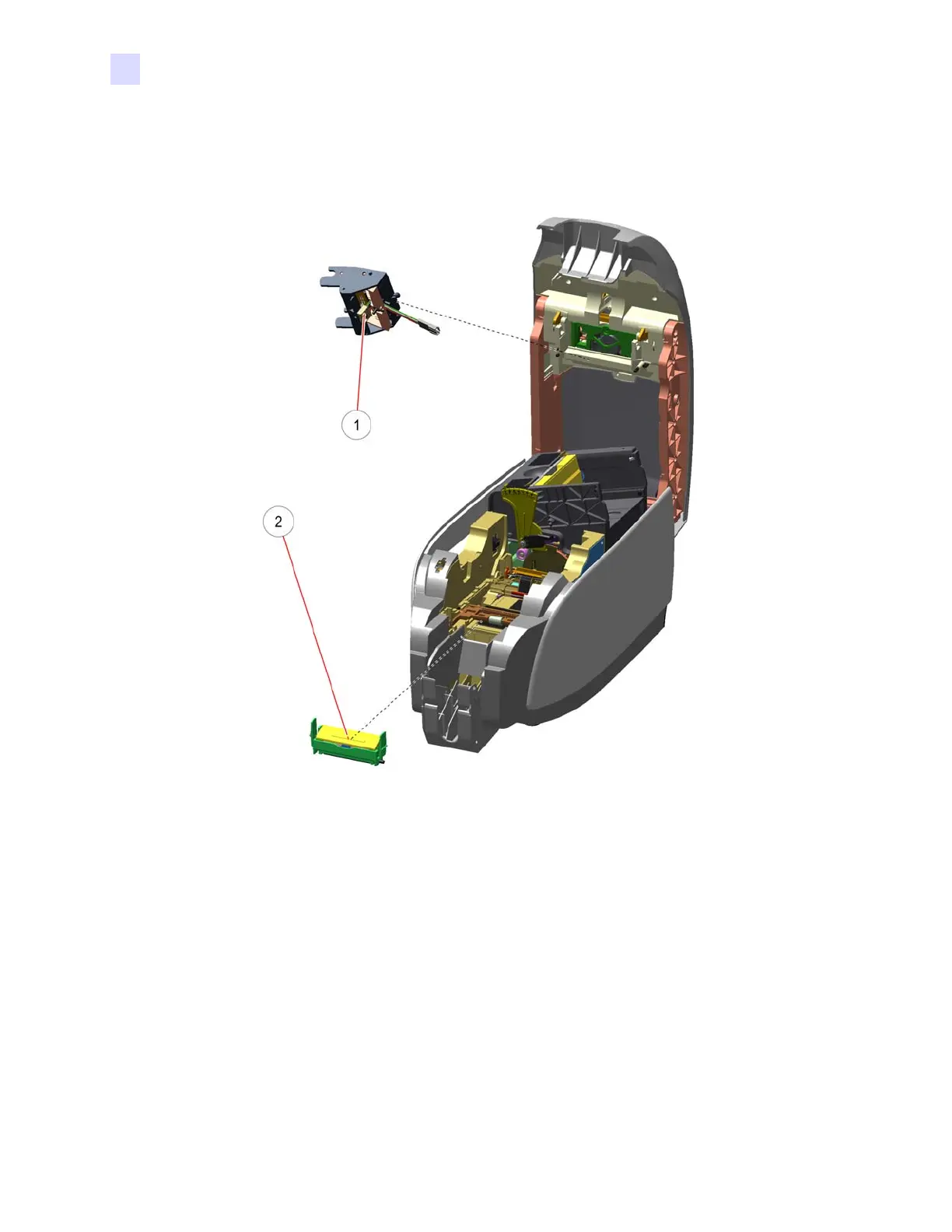

J: Spares List

# AftermarketKitP1031925‐xxx Qty

1 ‐012RibbonSensor 1

2 ‐029CleaningRollerAssembly 1
