J: Spares List

P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 329

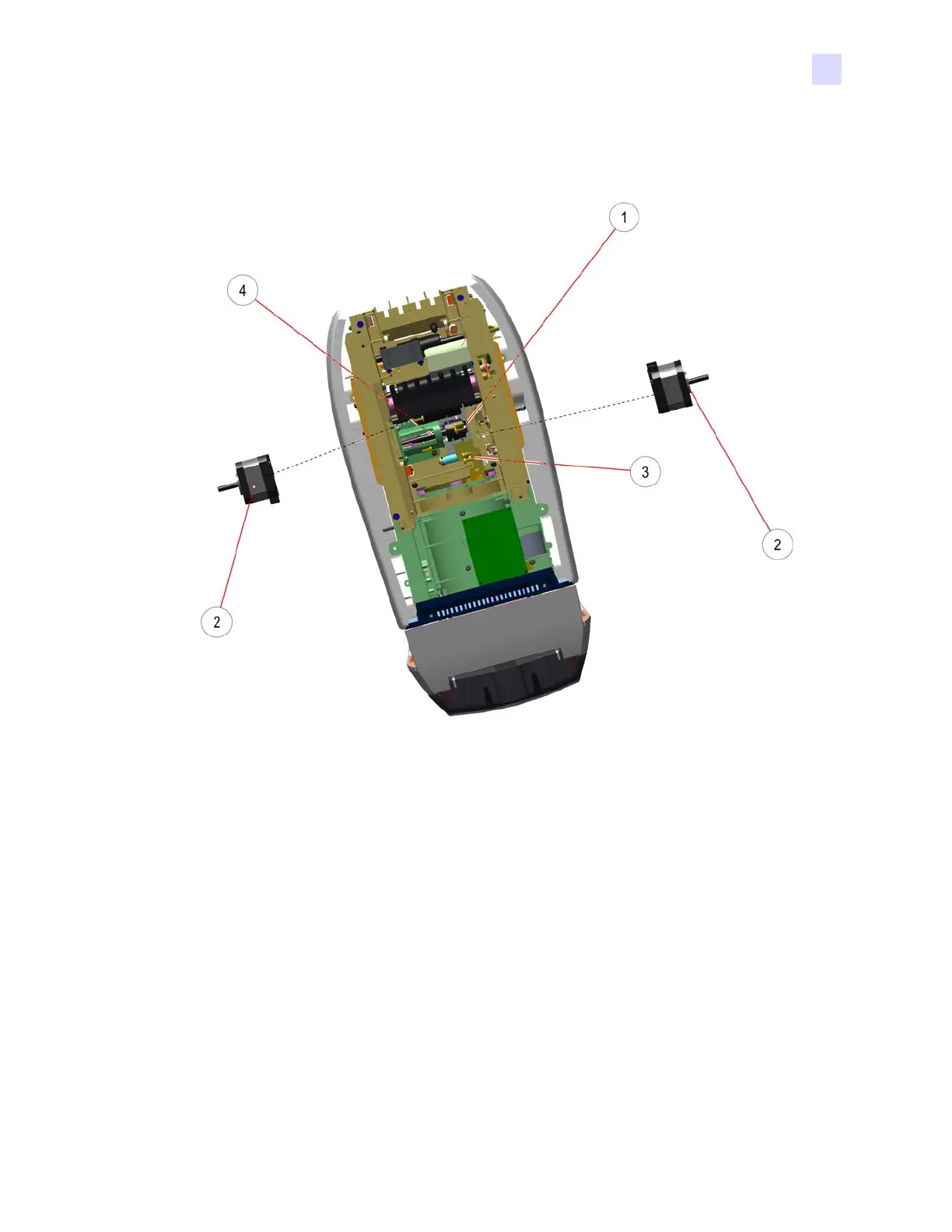

# AftermarketKitP1031925‐xxx Qty

1 ‐011MagHead 2

2 ‐018HeadLiftMotor;‐019RibbonMotor 2

3 ‐054SyncSensor 1

4 ‐217CardDriveMotor 1
