330 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

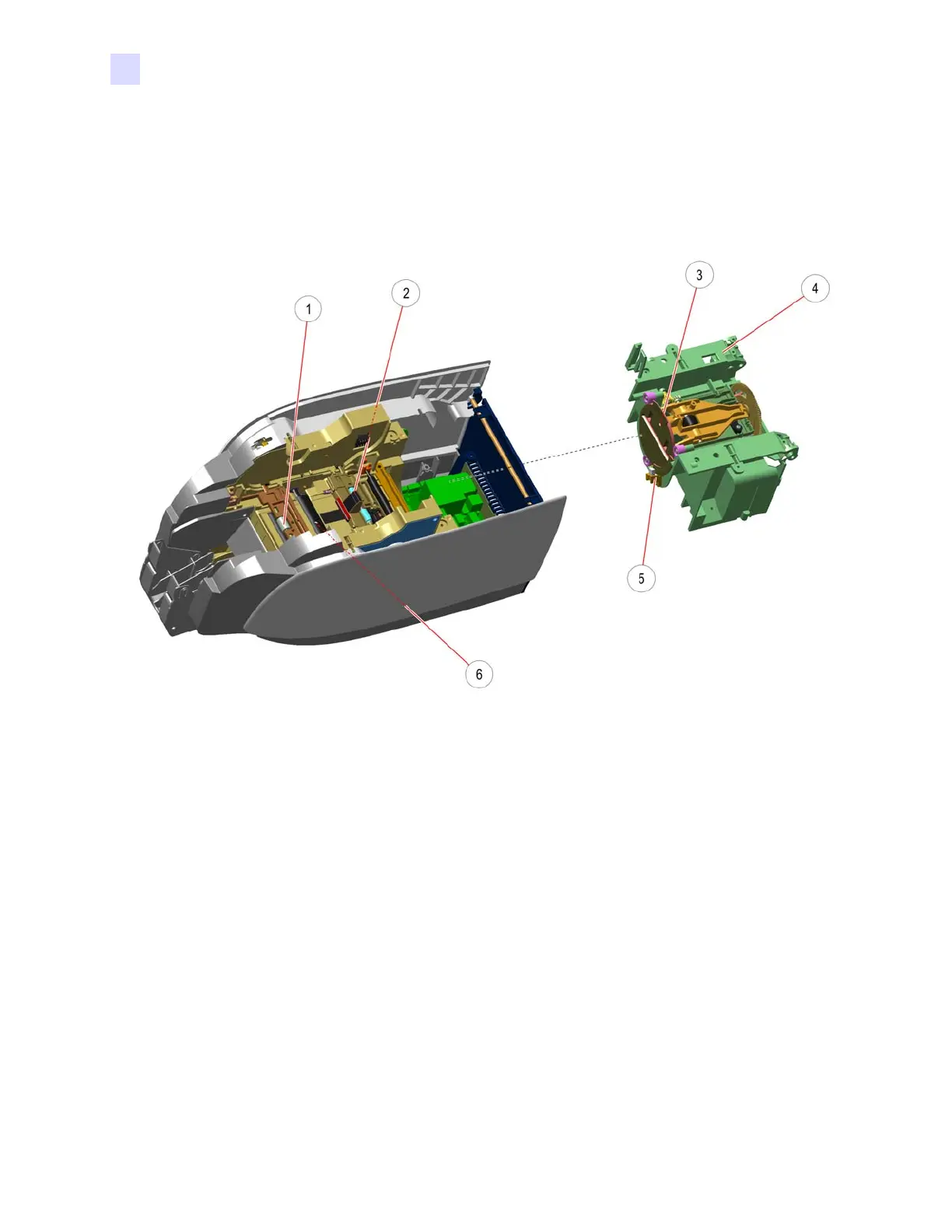

J: Spares List

# AftermarketKitP1031925‐xxx Qty

1partof‐074PressureRollers 1

2partof‐074PressureRollers 1

3 ‐233CarrierandDriveforFlipper 1

4 ‐076FlipperAssembly 1

5 ‐055FlipperSensor 1

6partof‐228PlatensforPrintEngine 1
