Changing the Printer Driver Options
Tools

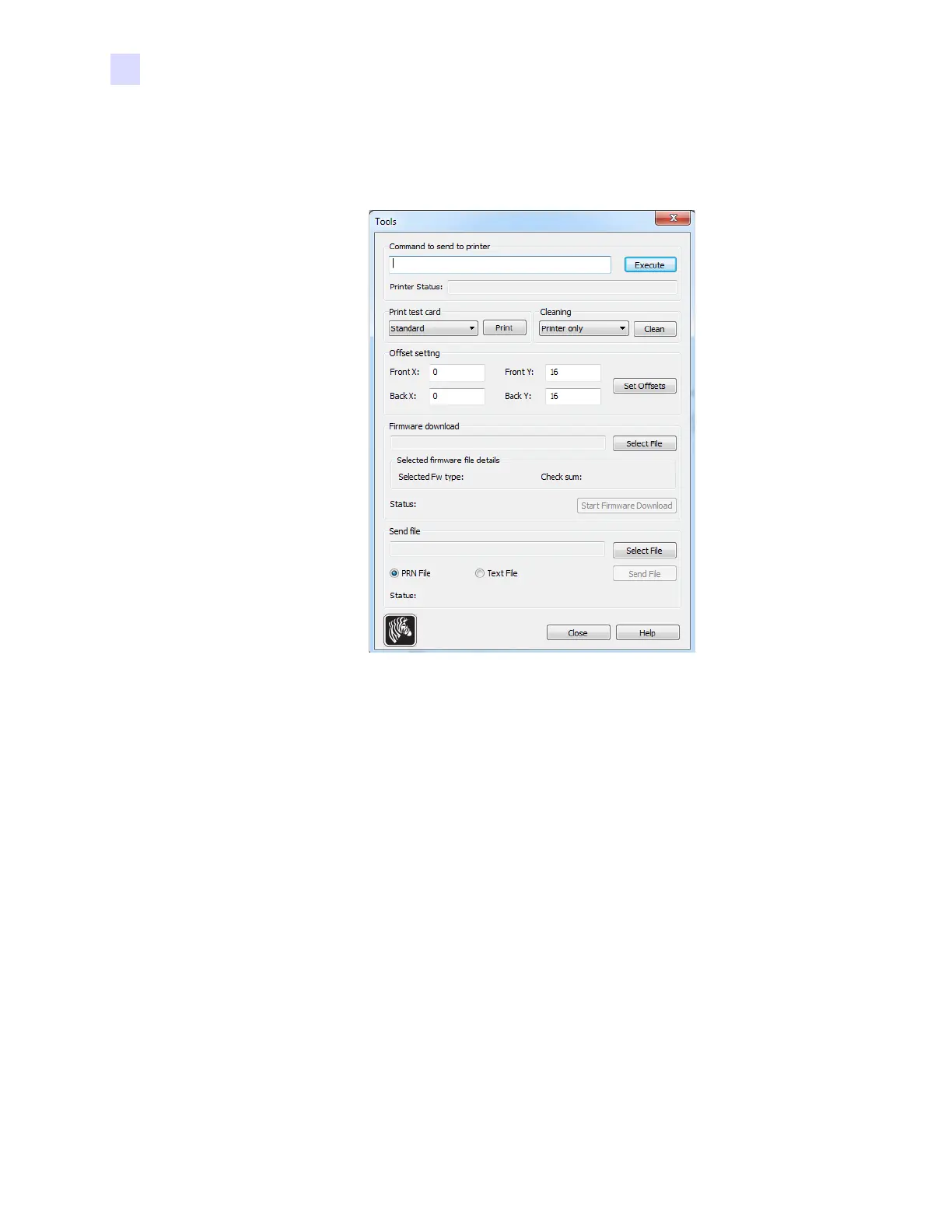

Dialog box for testing and communicating with the printer.
• Command to send to printer - Enter a printer command (all capitals without the leading
escape character) in the top edit box; e.g., MI MO, which will pick and eject one card.
Then click on the Execute button. Printer Status will show the status of the command.
See Appendix F for a complete list of the printer commands.
• Print test card - Select the desired test card type from the drop-down menu: Standard,
Printer Parameters, and Encoder Parameters. Click on the Print button to print the card.
• Cleaning - Select the desired cleaning to be performed from the drop-down menu: Printer
only or Magnetic encoder. Click on the Clean button to run the cleaning process.
• Offset setting - Enter the Front and Back X and Y direction offsets, and click on the
Set Offsets button to set the offsets for printing the card.
• Firmware Download: See Firmware Download on page 47 for details.
• Send File - This command will allow a .prn or .txt file to print.
- The .prn file must be created with a Zebra printer driver using the same ribbon as
present in the printer.
- The .txt file must contain firmware commands only with only one command per line.
The first line must only contain MASTER; the last line must only contain SLAVE.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
