2: Installation and Setup
Changing the Printer Driver Options
Black (K) Panel
Black Panel Options
The Black Panel Options pop-up window allows you to manage and configure the use of the
Black Panel (K panel) when the selected Ribbon Combination shows the K panel on the same
side as the Y, M, and C panels (e.g., YMCK Front / K Back).
Select a Ribbon Combination that has YMC and K all on the same side. The Front K
Extraction… and/or Back K Extraction... buttons will become active.

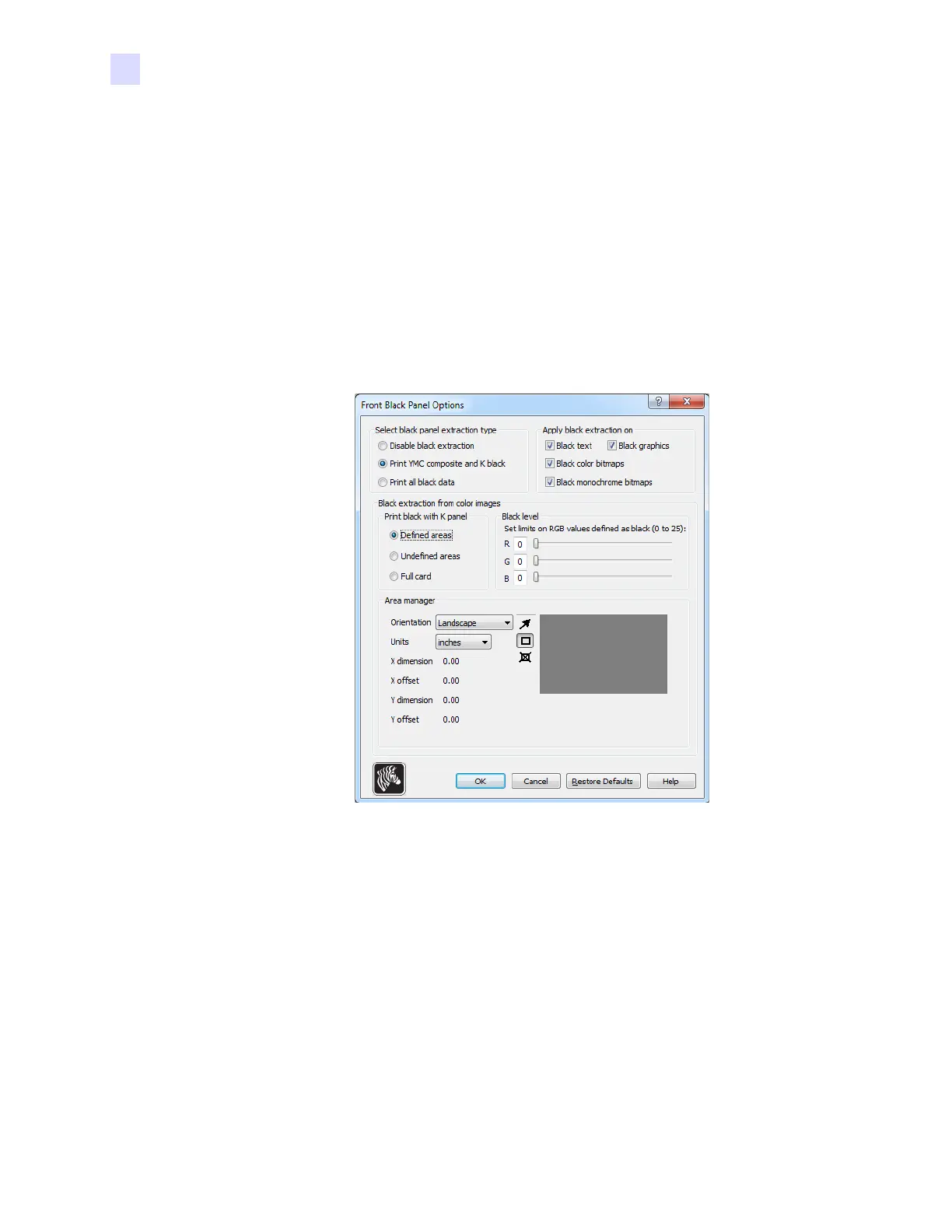

The figure below shows settings for the front side of the card; settings for the back side of the
card are identical.
To set how the printer prints the black areas of color images, several selections must be made:
• Select black panel extraction type:
- Disable black extraction does not use the K panel for any part of the image. This
selection will have the effect of rendering all black images as YMC composite.
- Print YMC composite and K black uses both the K panel and the Y, M, and C
panels to print the portions of the image that are identified as black. This selection will
result in a dark, black image; but the edges will be smooth (due to YMC printed under
the K), not the sharp edges typically desired for a barcode.
- Print all black data uses only the K panel to print the portions of the image that are
identified as being black. Note that the areas that are identified as black are based on
the threshold selections made in the black level area in the black extraction from color
images area; see Black extraction from color images: on page 54.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
