2: Installation and Setup
Changing the Printer Driver Options
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 55

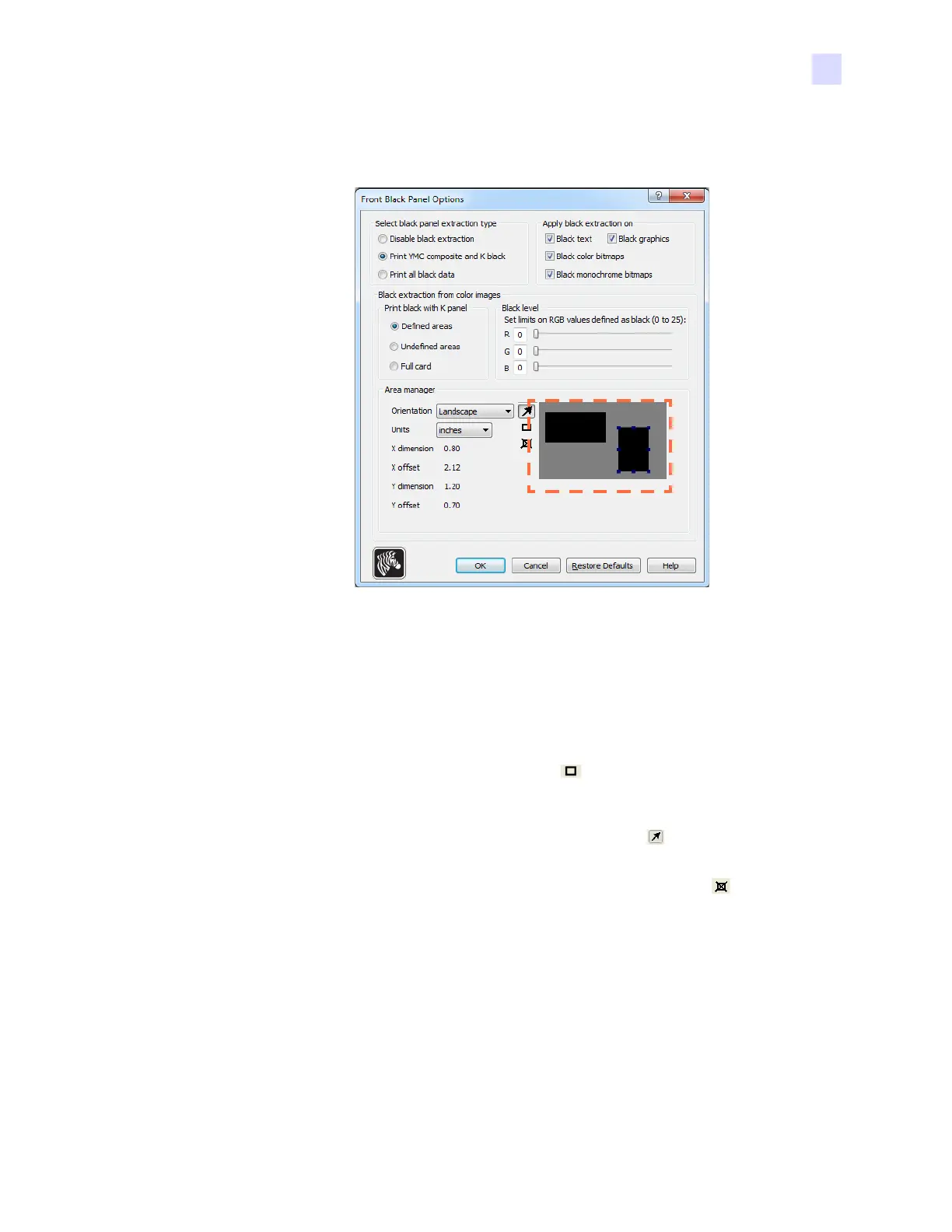

• Area manager: This option is enabled when either the Defined areas (extract inside the
zone) or the Undefined areas (extract outside the zone) radio button is selected.
• Orientation: The Orientation selection sets the image orientation to either
Portrait or Landscape.
• Units: The Units selection sets the units to either inches or mm (millimeters). The
X-dimension, X-offset, Y-dimension, and Y-offset reflect these units.
To create a zone: Select the rectangle icon , click on an area of the image to
establish the first corner of the zone, drag the cursor until the zone is the desired size
and shape, then release the mouse button. Note that multiple zones can be defined.
To select, move, or resize a zone: Select the arrow icon , click on a zone to select
it, then drag it to move it, or drag on the edges to resize it.
To delete a zone: Select the rectangle icon with an "X" through it , then click on
the zone that you want to delete.
