Zebra ZXP Series 3 Service Manual

2: Installation and Setup
Changing the Printer Driver Options
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 59

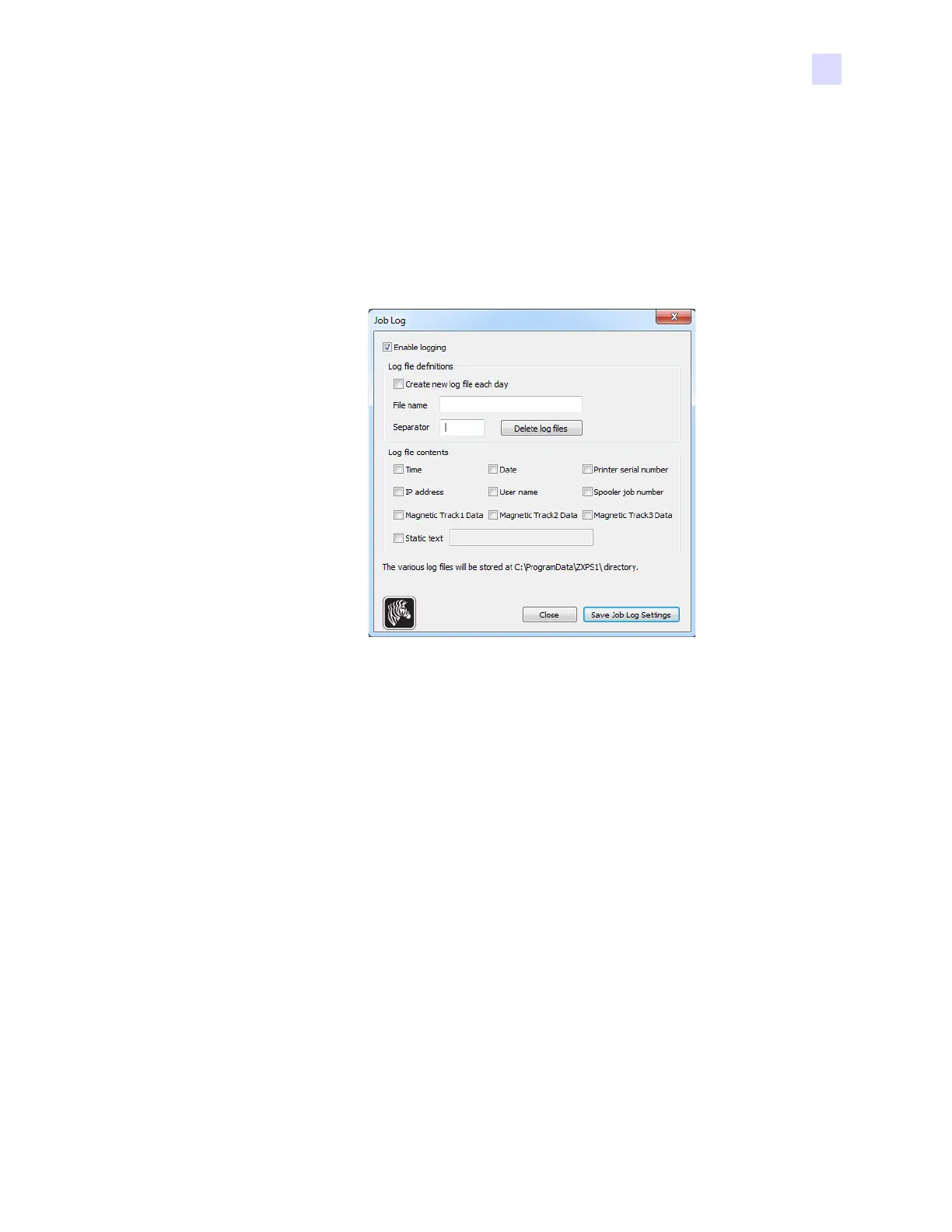

Job Log
The Job Log is a utility that builds a database of card transactions in the printer’s host
computer. The Job Log records the data encoded on the card’s magnetic stripe, together with
date, time, and the printer’s serial number.
The data set can be uploaded at any time to a central archive, thus providing a means for
security officers to validate a card by comparing it with tamper-proof real data.
• Enable logging - If this box is checked, the logging feature is enabled.
• Log File Definition - Choose one of the following options:
- If the “Create new log file each day” box is unchecked, the data is saved to a log file
of your choice (Filename).
- If the box is checked, the data is saved to log file ZXPLog with the day’s date; e.g.,
ZXPLog_14_9_4.
- In addition to the Filename, you may wish to enter a special field Separator Character.
The default field Separator Character is “|”.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
