Zebra ZXP Series 3 Service Manual

58 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
2: Installation and Setup
Changing the Printer Driver Options
Overlay Varnish Options
The Overlay Varnish Options window allows you to manage and configure the use of the
Overlay when the selected Ribbon Combination shows the O panel (e.g. YMCKO).

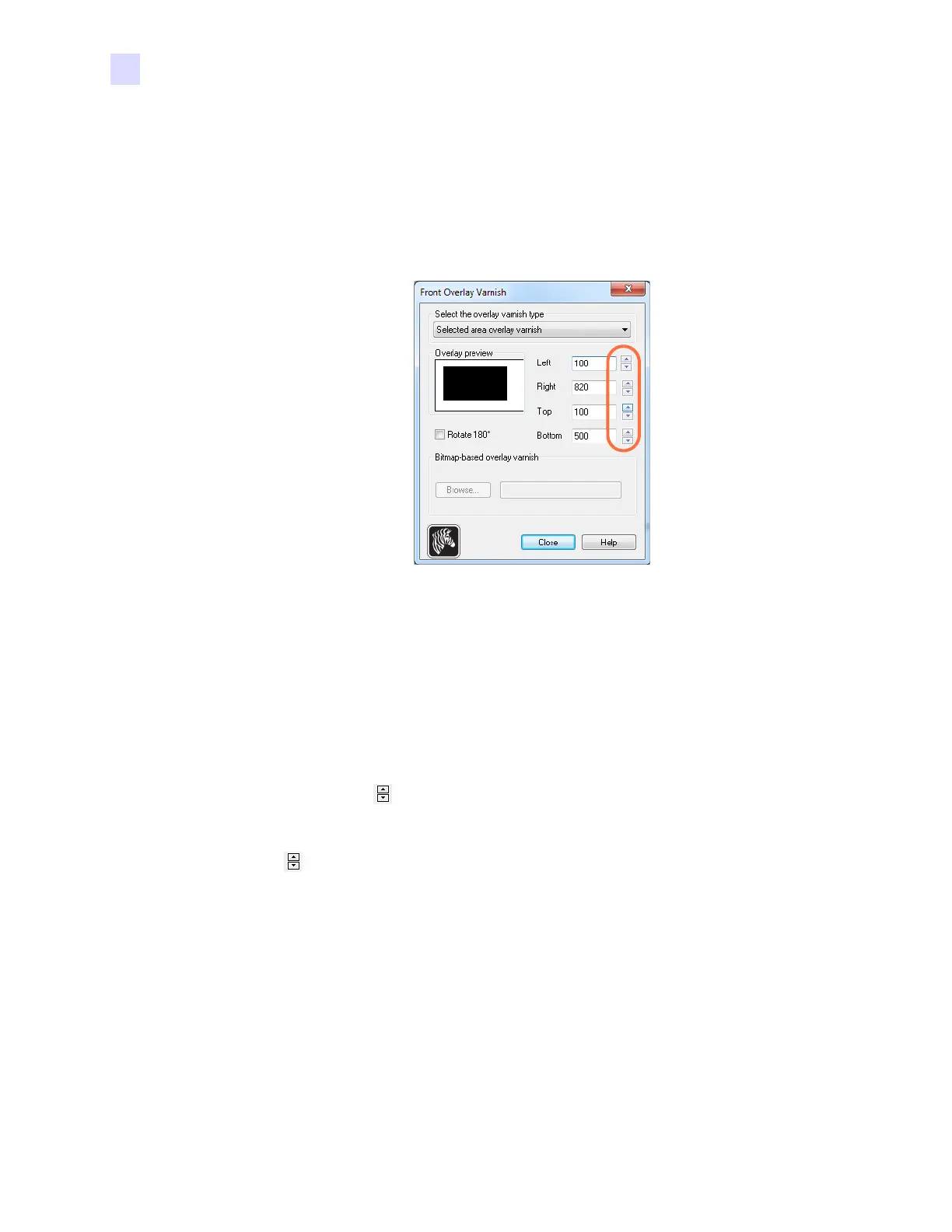

The figure below shows settings for the front side of the card; settings for the back side of the
card are identical.
Select the overlay varnish type - Option selection for applying overlay varnish ribbon to a
card. Default setting is full edge-to-edge varnish.
There are various varnish options. A preview pane is shown for each selection.
• Full overlay varnish - Applies an edge-to-edge overlay.
• No overlay - Does not apply any overlay.
• Selected area overlay varnish - Applies the overlay inside the area specified by the
user. When this option is selected, position the Left, Right, Top, and Bottom overlay
edges via the buttons (circled above).
• Selected area blank - Applies the overlay outside the area specified by the user. When
this option is selected, position the Left, Right, Top, and Bottom overlay edges via the
buttons (circled above).
• Bitmap-based overlay varnish - Applies a user-defined bitmap (.bmp file extension) in
the overlay panel. When selected, click the Browse button; in the browse window,
find the desired monochrome bitmap (1 bpp); and click the Open button.
• Smartcard ISO - Does not apply overlay in the area of the ISO standard Smart
Card contacts.
• Smartcard AFNOR - Does not apply overlay in the area of the AFNOR standard
Smart Card contacts. AFNOR stands for Agence Française de Normalisation, a
standardization organization based in France.
- Magnetic Stripe - Does not apply overlay in the area of the ISO standard
Magnetic Stripe.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
